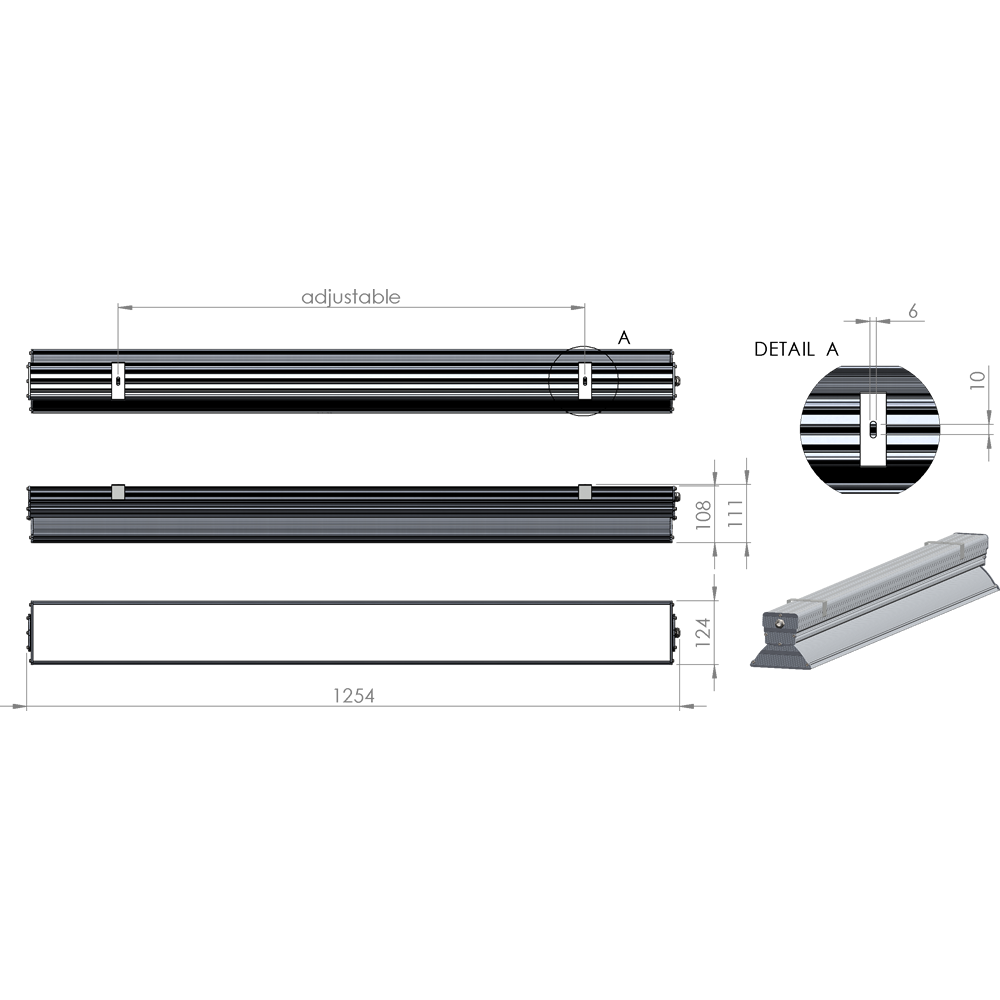

  • l5-120igdrawing
  • l5_diagram

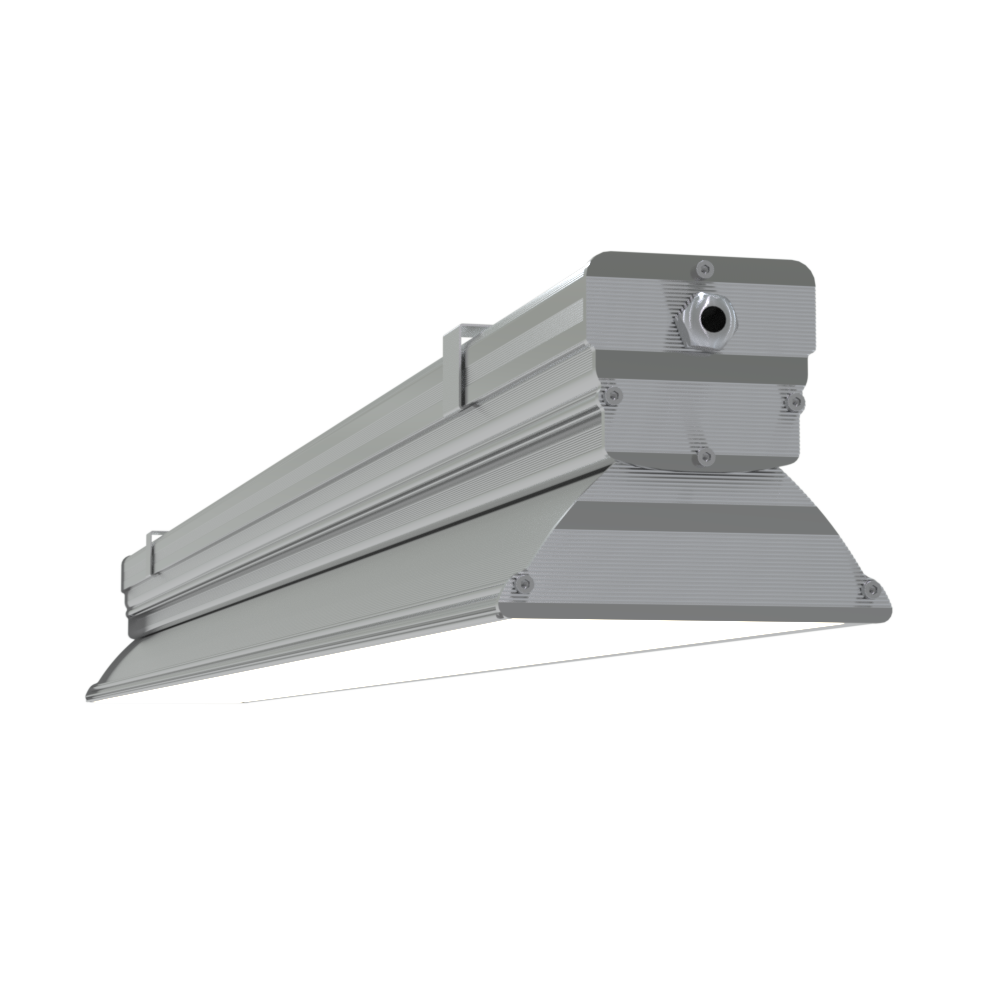

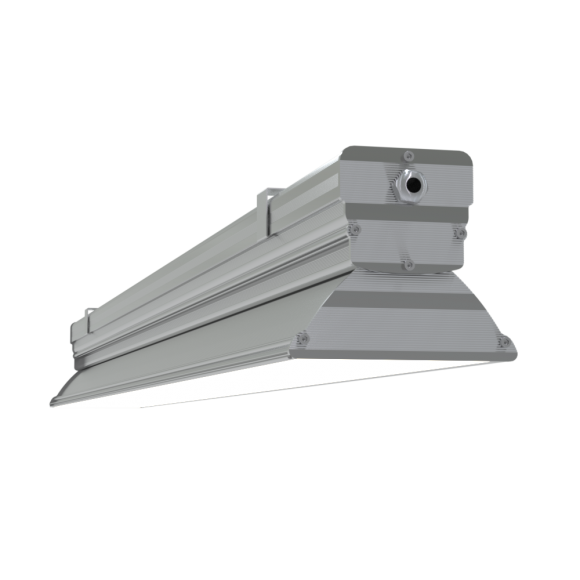

  • L5 Linear Igor Style 80W LP-L5-P120-288 IG

    L5 Linear Igor style LED Luminaires are indoor linear LED lamps, with built in power supply and on top cover which is specially designed for direct replacement of currently existing individual and continuous row fluorescent luminaires.

    A2PLUS

    Applications:

    • Retail shops and supermarkets
    • Production facilities
    • Warehouses
    • Public buildings

    SKU: 55306

    Features

    Luminous Flux up to 9920 lm
    Efficiency up to 124 lm/W
    Luminaire Input Power 80 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.347 A
    Working Voltage AC 220 – 240 V
    Type of protection IP33
    Life 100 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -30 to +40 C°
    Housing Aluminium
    Diffuser PMMA
    Dimensions L x W x H 1254 x 124 x 111 mm
    L5 Linear Igor Style 80W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L5-P120-288 IG 553311293 LP-L5-P120-288 IG 553311293 112 Lm/W 8960 Lm 3000 K NO
    Download Specifications LP-L5-P120-288 IG 553411294 LP-L5-P120-288 IG 553411294 118 Lm/W 9440 Lm 4000 K NO
    Download Specifications LP-L5-P120-288 IG 553511295 LP-L5-P120-288 IG 553511295 124 Lm/W 9920 Lm 5000 K NO
    Download Specifications LP-L5-P120-288 IG DALI 553331296 LP-L5-P120-288 IG DALI 553331296 112 Lm/W 8960 Lm 3000 K YES – to 1%
    Download Specifications LP-L5-P120-288 IG DALI 553431297 LP-L5-P120-288 IG DALI 553431297 118 Lm/W 9440 Lm 4000 K YES – to 1%
    Download Specifications LP-L5-P120-288 IG DALI 553531298 LP-L5-P120-288 IG DALI 553531298 124 Lm/W 9920 Lm 5000 K YES – to 1%
    Download Specifications LP-L5-P120-288 IG PWM 553341299 LP-L5-P120-288 IG PWM 553341299 112 Lm/W 8960 Lm 3000 K YES – to 10%
    Download Specifications LP-L5-P120-288 IG PWM 553441300 LP-L5-P120-288 IG PWM 553441300 118 Lm/W 9440 Lm 4000 K YES – to 10%
    Download Specifications LP-L5-P120-288 IG PWM 553541301 LP-L5-P120-288 IG PWM 553541301 124 Lm/W 9920 Lm 5000 K YES – to 10%
    L5 Linear Igor Style 80W
    model
    Article number LDT files Protocols
    Download Specifications LP-L5-P120-288 IG 553311293 LP-L5-P120-288 IG 553311293 LDT (3.41 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P120-288 IG 553411294 LP-L5-P120-288 IG 553411294 LDT (3.41 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P120-288 IG 553511295 LP-L5-P120-288 IG 553511295 LDT (3.41 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P120-288 IG DALI 553331296 LP-L5-P120-288 IG DALI 553331296 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P120-288 IG DALI 553431297 LP-L5-P120-288 IG DALI 553431297 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P120-288 IG DALI 553531298 LP-L5-P120-288 IG DALI 553531298 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P120-288 IG PWM 553341299 LP-L5-P120-288 IG PWM 553341299 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P120-288 IG PWM 553441300 LP-L5-P120-288 IG PWM 553441300 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P120-288 IG PWM 553541301 LP-L5-P120-288 IG PWM 553541301 LDT (3.42 KB) Protocol (2.90 MB)
