Home Office LED Luminaires LC Ceiling Style LC Ceiling Style 28W LP-PVC14-100
  • LC Ceiling Style 28W LP-PVC14-100

    LC Ceiling line is easy to install on ceilings with it’s smart designed mounting system. It offers unparalleled energy and maintenance savings compared to T5 and T8 solutions and maximum efficiency.
    A2PLUS

    Applications:

    • Offices
    • Foyers
    • Conference rooms
    • Corridors, entrances, stairwells

    SKU: 51109

    Features

    Luminous Flux up to 3780 lm
    Efficiency up to 135 lm/W
    Luminaire Input Power 28 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.121 A
    Working Voltage AC 220 – 240 V
    Type of protection IP20
    Life 100 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Polyvinyl chloride
    Diffuser PMMA

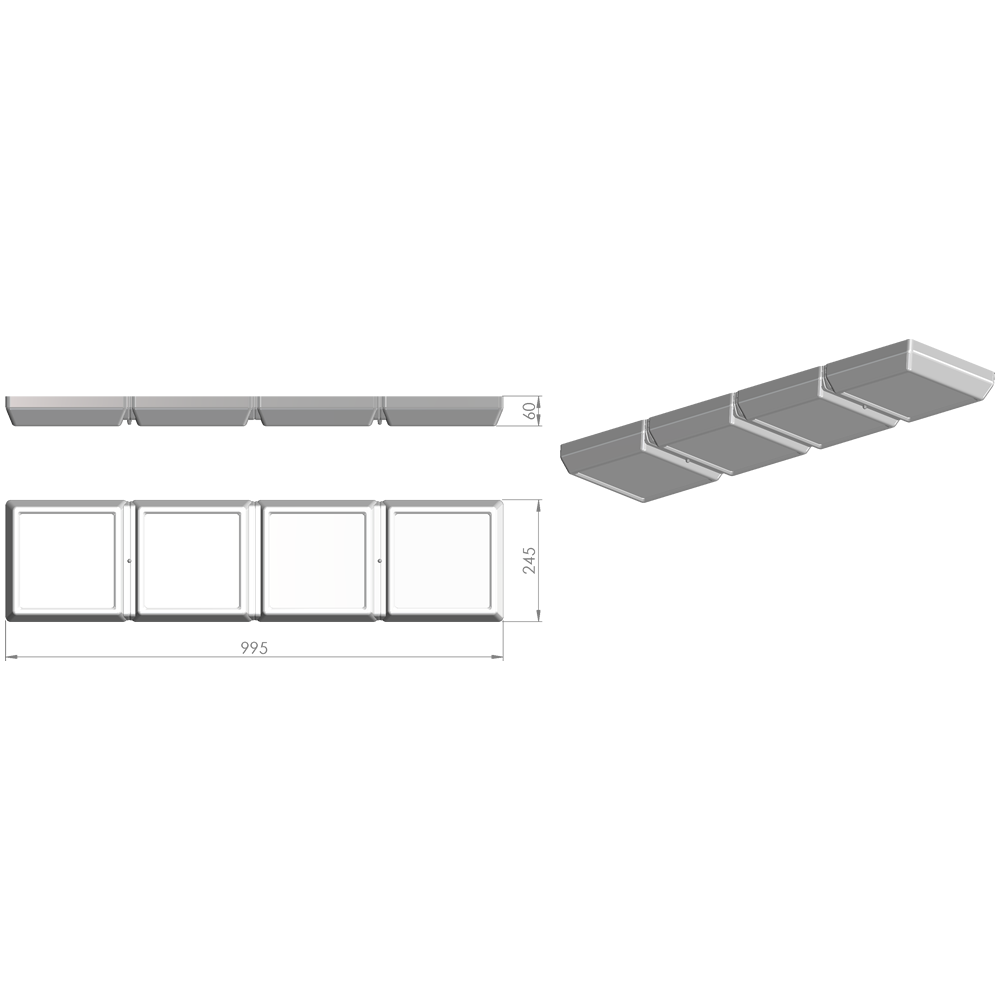

    Dimensions L x W x H 995 x 245 x 60 mm
    LC Ceiling Style 28W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-PVC14-100 51131630 LP-PVC14-100 51131630 121 Lm/W 3390 Lm 3000 K NO
    Download Specifications LP-PVC14-100 51141631 LP-PVC14-100 51141631 128 Lm/W 3580 Lm 4000 K NO
    Download Specifications LP-PVC14-100 51151632 LP-PVC14-100 51151632 135 Lm/W 3780 Lm 5000 K NO
    Download Specifications LP-PVC14-100 Phase Cut 51132633 LP-PVC14-100 Phase Cut 51132633 121 Lm/W 3390 Lm 3000 K YES – to 10%
    Download Specifications LP-PVC14-100 Phase Cut 51142634 LP-PVC14-100 Phase Cut 51142634 128 Lm/W 3580 Lm 4000 K YES – to 10%
    Download Specifications LP-PVC14-100 Phase Cut 51152635 LP-PVC14-100 Phase Cut 51152635 135 Lm/W 3780 Lm 5000 K YES – to 10%
    Download Specifications LP-PVC14-100 DALI 51133636 LP-PVC14-100 DALI 51133636 121 Lm/W 3390 Lm 3000 K YES – to 1%
    Download Specifications LP-PVC14-100 DALI 51143637 LP-PVC14-100 DALI 51143637 128 Lm/W 3580 Lm 4000 K YES – to 1%
    Download Specifications LP-PVC14-100 DALI 51153638 LP-PVC14-100 DALI 51153638 135 Lm/W 3780 Lm 5000 K YES – to 1%
    LC Ceiling Style 28W
    model
    Article number LDT files CE Protocols
    Download Specifications LP-PVC14-100 51131630 LP-PVC14-100 51131630 LDT (2.82 KB) CE(145.98 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC14-100 51141631 LP-PVC14-100 51141631 LDT (2.82 KB) CE(145.98 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC14-100 51151632 LP-PVC14-100 51151632 LDT (2.82 KB) CE(145.98 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC14-100 Phase Cut 51132633 LP-PVC14-100 Phase Cut 51132633 LDT (2.83 KB) CE(145.96 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC14-100 Phase Cut 51142634 LP-PVC14-100 Phase Cut 51142634 LDT (2.83 KB) CE(145.96 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC14-100 Phase Cut 51152635 LP-PVC14-100 Phase Cut 51152635 LDT (2.83 KB) CE(145.96 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC14-100 DALI 51133636 LP-PVC14-100 DALI 51133636 LDT (2.84 KB) CE(145.98 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC14-100 DALI 51143637 LP-PVC14-100 DALI 51143637 LDT (2.84 KB) CE(145.98 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC14-100 DALI 51153638 LP-PVC14-100 DALI 51153638 LDT (2.84 KB) CE(145.98 KB) Protocol (2.79 MB)
