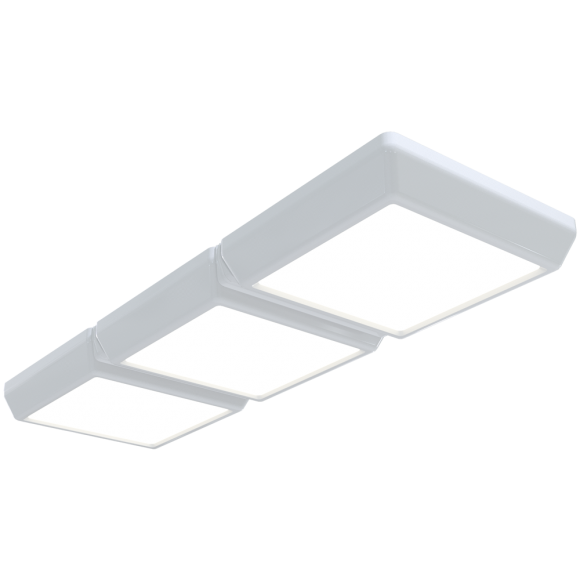

Home Office LED Luminaires LC Ceiling Style LC Ceiling Style 30W LP-PVC13-108
  • LC Ceiling Style 30W LP-PVC13-108

    LC Ceiling line is easy to install on ceilings with it’s smart designed mounting system. It offers unparalleled energy and maintenance savings compared to T5 and T8 solutions and maximum efficiency.
    A2PLUS

    Applications:

    • Offices
    • Foyers
    • Conference rooms
    • Corridors, entrances, stairwells

    SKU: 51108

    Features

    Luminous Flux up to 3900 lm
    Efficiency up to 130 lm/W
    Luminaire Input Power 30 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.130 A
    Working Voltage AC 220 – 240 V
    Type of protection IP20
    Life 100 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Polyvinyl chloride
    Diffuser PMMA

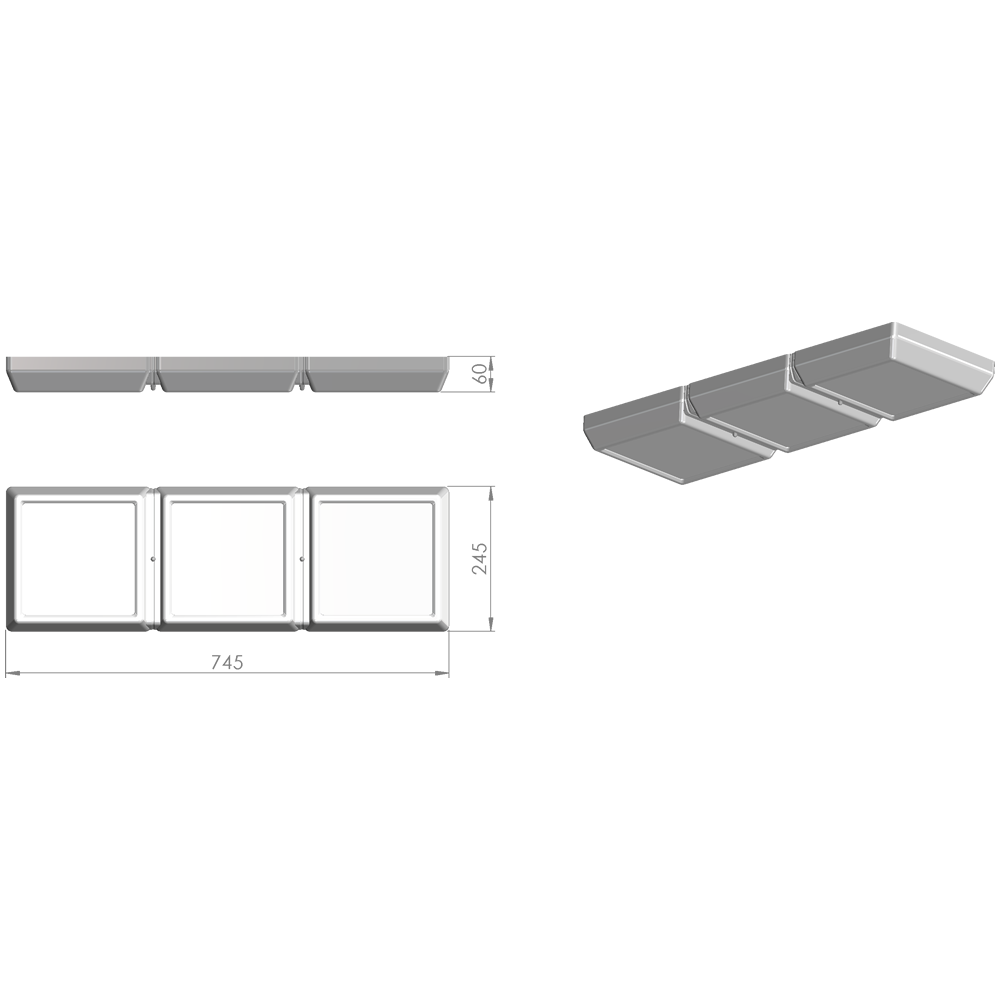

    Dimensions L x W x H 745 x 245 x 60 mm
    LC Ceiling Style 30W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-PVC13-108 51131621 LP-PVC13-108 51131621 117 Lm/W 3500 Lm 3000 K NO
    Download Specifications LP-PVC13-108 51141622 LP-PVC13-108 51141622 123 Lm/W 3690 Lm 4000 K NO
    Download Specifications LP-PVC13-108 51151623 LP-PVC13-108 51151623 130 Lm/W 3900 Lm 5000 K NO
    Download Specifications LP-PVC13-108 Phase Cut 51132624 LP-PVC13-108 Phase Cut 51132624 117 Lm/W 3500 Lm 3000 K YES – to 10%
    Download Specifications LP-PVC13-108 Phase Cut 51142625 LP-PVC13-108 Phase Cut 51142625 123 Lm/W 3690 Lm 4000 K YES – to 10%
    Download Specifications LP-PVC13-108 Phase Cut 51152626 LP-PVC13-108 Phase Cut 51152626 130 Lm/W 3900 Lm 5000 K YES – to 10%
    Download Specifications LP-PVC13-108 DALI 51133627 LP-PVC13-108 DALI 51133627 117 Lm/W 3500 Lm 3000 K YES – to 1%
    Download Specifications LP-PVC13-108 DALI 51143628 LP-PVC13-108 DALI 51143628 123 Lm/W 3690 Lm 4000 K YES – to 1%
    Download Specifications LP-PVC13-108 DALI 51153629 LP-PVC13-108 DALI 51153629 130 Lm/W 3900 Lm 5000 K YES – to 1%
    LC Ceiling Style 30W
    model
    Article number LDT files CE Protocols
    Download Specifications LP-PVC13-108 51131621 LP-PVC13-108 51131621 LDT (2.82 KB) CE(145.96 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC13-108 51141622 LP-PVC13-108 51141622 LDT (2.82 KB) CE(145.96 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC13-108 51151623 LP-PVC13-108 51151623 LDT (2.82 KB) CE(145.96 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC13-108 Phase Cut 51132624 LP-PVC13-108 Phase Cut 51132624 LDT (2.83 KB) CE(145.97 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC13-108 Phase Cut 51142625 LP-PVC13-108 Phase Cut 51142625 LDT (2.83 KB) CE(145.97 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC13-108 Phase Cut 51152626 LP-PVC13-108 Phase Cut 51152626 LDT (2.83 KB) CE(145.97 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC13-108 DALI 51133627 LP-PVC13-108 DALI 51133627 LDT (2.83 KB) CE(145.98 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC13-108 DALI 51143628 LP-PVC13-108 DALI 51143628 LDT (2.83 KB) CE(145.98 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC13-108 DALI 51153629 LP-PVC13-108 DALI 51153629 LDT (2.84 KB) CE(145.98 KB) Protocol (2.79 MB)
