  • LC Recessed Style 39W LP-PVC30x120-144

    LC Recessed style is used specially for modular ceilings with visible grid system. It offers unparalleled energy and maintenance savings compared to T5 and T8 solutions and maximum efficiency.
    A2PLUS

    Applications:

    • Offices
    • Foyers
    • Conference rooms
    • Corridors, entrances, stairwells

    SKU: 51007

    Features

    Luminous Flux up to 5060 lm
    Efficiency up to 130 lm/W
    Luminaire Input Power 39 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.169 A
    Working Voltage AC 220 – 240 V
    Type of protection IP20
    Life 100 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Polyvinyl chloride
    Diffuser PMMA

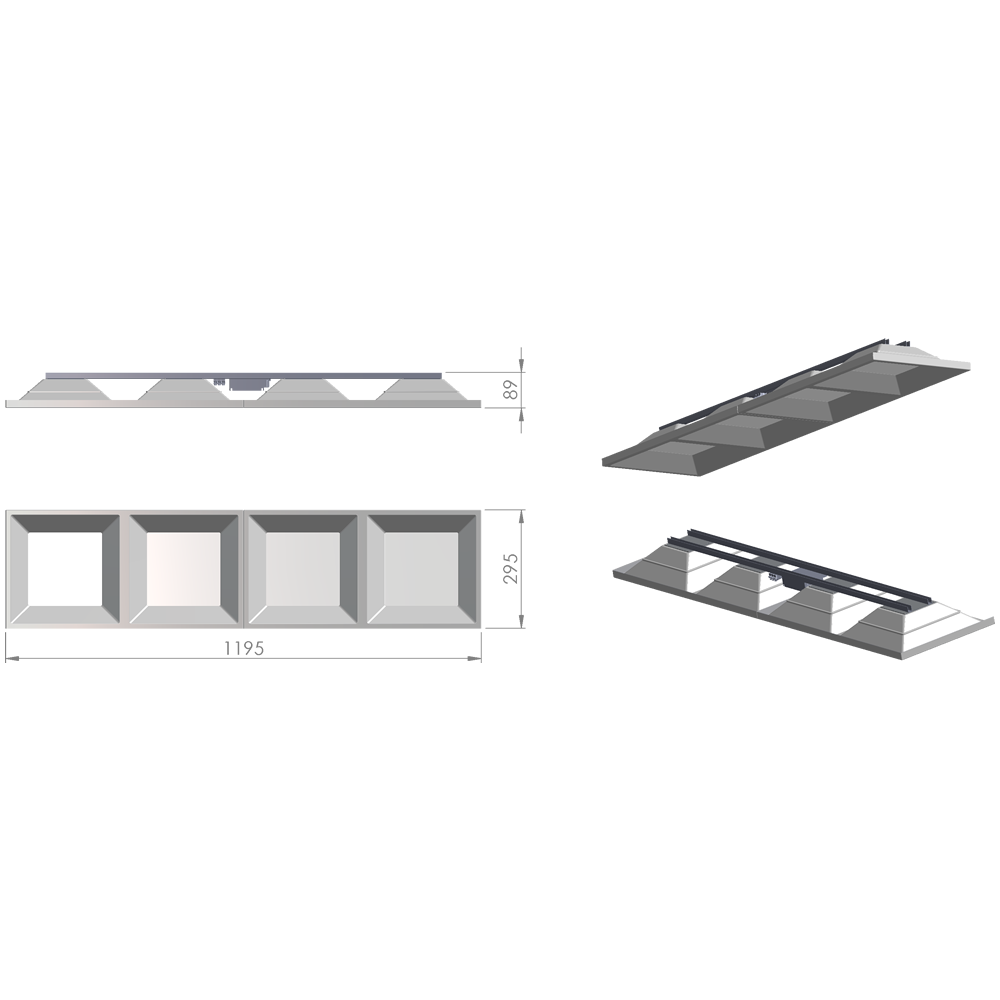

    Dimensions L x W x H 1195 x 295 x 89 mm
    Weight 2.0 kg
    LC Recessed Style 39W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-PVC30X120-144 510311041 LP-PVC30X120-144 510311041 117 Lm/W 4540 Lm 3000 K NO
    Download Specifications LP-PVC30X120-144 510411042 LP-PVC30X120-144 510411042 123 Lm/W 4800 Lm 4000 K NO
    Download Specifications LP-PVC30X120-144 510511043 LP-PVC30X120-144 510511043 130 Lm/W 5060 Lm 5000 K NO
    Download Specifications LP-PVC30X120-144 Phase Cut 510321044 LP-PVC30X120-144 Phase Cut 510321044 117 Lm/W 4540 Lm 3000 K YES – to 10%
    Download Specifications LP-PVC30X120-144 Phase Cut 510421045 LP-PVC30X120-144 Phase Cut 510421045 123 Lm/W 4800 Lm 4000 K YES – to 10%
    Download Specifications LP-PVC30X120-144 Phase Cut 510521046 LP-PVC30X120-144 Phase Cut 510521046 130 Lm/W 5060 Lm 5000 K YES – to 10%
    Download Specifications LP-PVC30X120-144 DALI 510331047 LP-PVC30X120-144 DALI 510331047 117 Lm/W 4540 Lm 3000 K YES – to 1%
    Download Specifications LP-PVC30X120-144 DALI 510431048 LP-PVC30X120-144 DALI 510431048 123 Lm/W 4800 Lm 4000 K YES – to 1%
    Download Specifications LP-PVC30X120-144 DALI 510531049 LP-PVC30X120-144 DALI 510531049 130 Lm/W 5060 Lm 5000 K YES – to 1%
    LC Recessed Style 39W
    model
    Article number LDT files CE Protocols
    Download Specifications LP-PVC30X120-144 510311041 LP-PVC30X120-144 510311041 LDT (2.86 KB) CE(146.53 KB) Protocol (1.18 MB)
    Download Specifications LP-PVC30X120-144 510411042 LP-PVC30X120-144 510411042 LDT (2.86 KB) CE(146.53 KB) Protocol (1.18 MB)
    Download Specifications LP-PVC30X120-144 510511043 LP-PVC30X120-144 510511043 LDT (2.86 KB) CE(146.53 KB) Protocol (1.18 MB)
    Download Specifications LP-PVC30X120-144 Phase Cut 510321044 LP-PVC30X120-144 Phase Cut 510321044 LDT (2.87 KB) CE(146.54 KB) Protocol (1.18 MB)
    Download Specifications LP-PVC30X120-144 Phase Cut 510421045 LP-PVC30X120-144 Phase Cut 510421045 LDT (2.87 KB) CE(146.54 KB) Protocol (1.18 MB)
    Download Specifications LP-PVC30X120-144 Phase Cut 510521046 LP-PVC30X120-144 Phase Cut 510521046 LDT (2.87 KB) CE(146.54 KB) Protocol (1.18 MB)
    Download Specifications LP-PVC30X120-144 DALI 510331047 LP-PVC30X120-144 DALI 510331047 LDT (2.88 KB) CE(146.55 KB) Protocol (1.18 MB)
    Download Specifications LP-PVC30X120-144 DALI 510431048 LP-PVC30X120-144 DALI 510431048 LDT (2.88 KB) CE(146.55 KB) Protocol (1.18 MB)
    Download Specifications LP-PVC30X120-144 DALI 510531049 LP-PVC30X120-144 DALI 510531049 LDT (2.88 KB) CE(146.55 KB) Protocol (1.18 MB)
