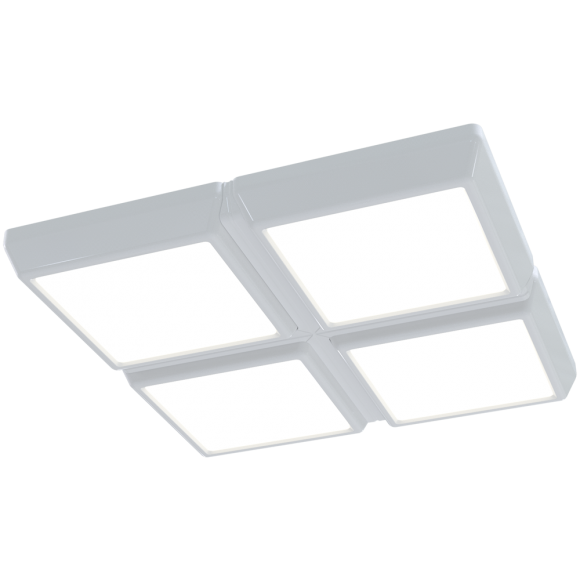

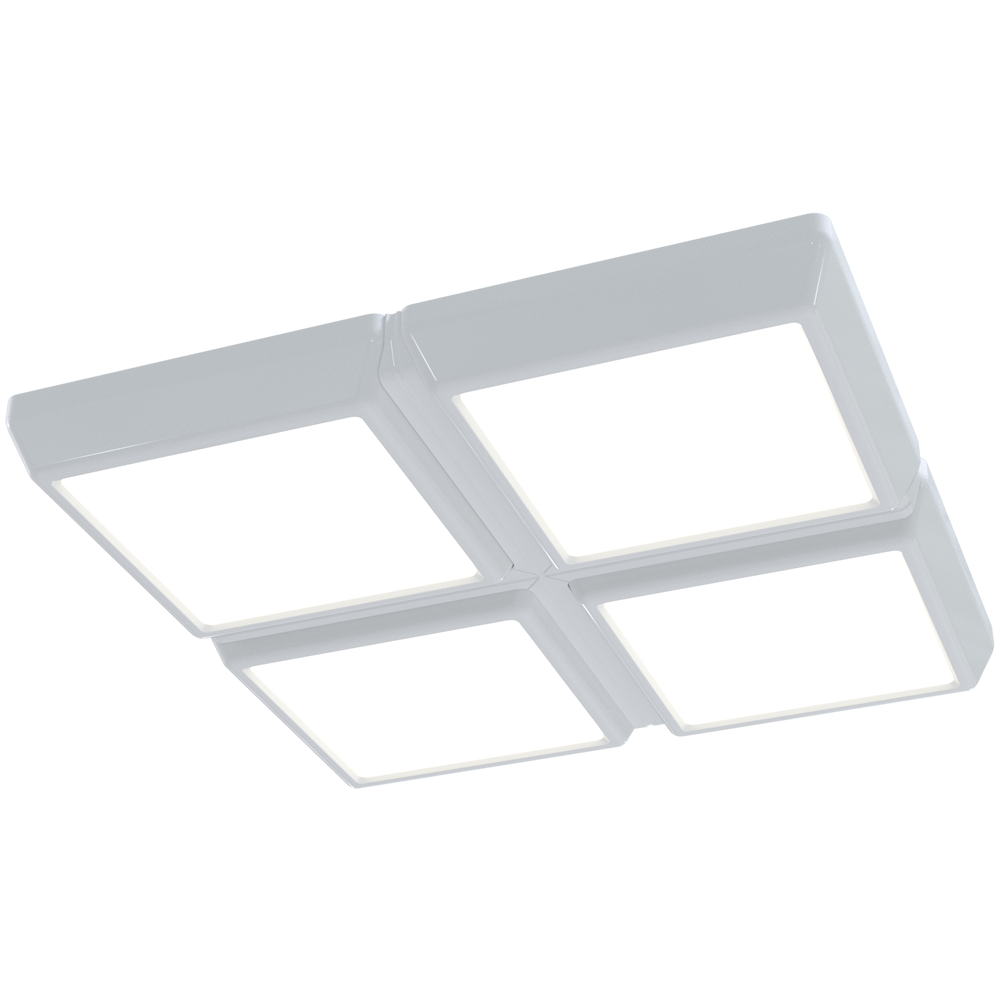

  • LC Ceiling Style 39W LP-PVC22-144

    LC Ceiling line is easy to install on ceilings with it’s smart designed mounting system. It offers unparalleled energy and maintenance savings compared to T5 and T8 solutions and maximum efficiency.
    A2PLUS

    Applications:

    • Offices
    • Foyers
    • Conference rooms
    • Corridors, entrances, stairwells

    SKU: 51112

    Features

    Luminous Flux up to 5060 lm
    Efficiency up to 130 lm/W
    Luminaire Input Power 39 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.169 A
    Working Voltage AC 220 – 240 V
    Type of protection IP20
    Life 100 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Polyvinyl chloride
    Diffuser PMMA

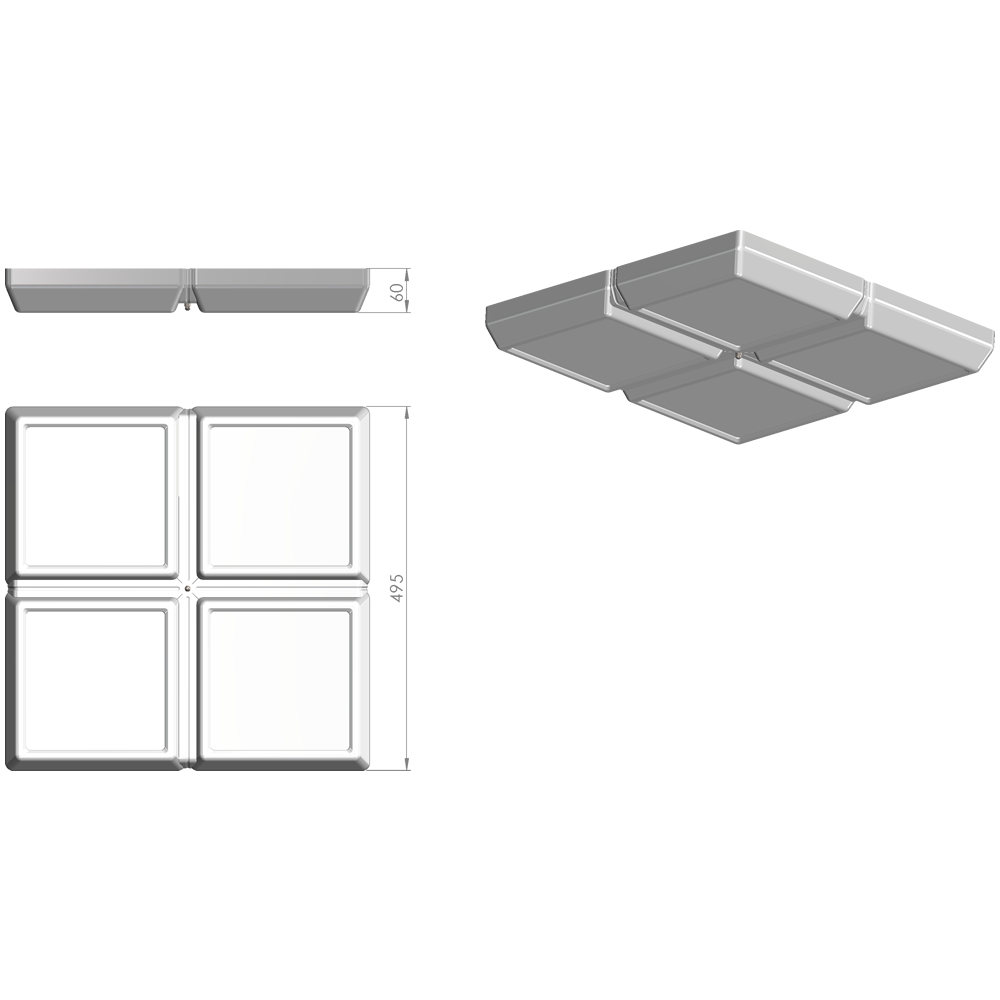

    Dimensions L x W x H 495 x 495 x 60 mm
    LC Ceiling Style 39W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-PVC22-144 51131657 LP-PVC22-144 51131657 117 Lm/W 4540 Lm 3000 K NO
    Download Specifications LP-PVC22-144 51141658 LP-PVC22-144 51141658 123 Lm/W 4800 Lm 4000 K NO
    Download Specifications LP-PVC22-144 51151659 LP-PVC22-144 51151659 130 Lm/W 5060 Lm 5000 K NO
    Download Specifications LP-PVC22-144 Phase Cut 51132660 LP-PVC22-144 Phase Cut 51132660 117 Lm/W 4540 Lm 3000 K YES – to 10%
    Download Specifications LP-PVC22-144 Phase Cut 51142661 LP-PVC22-144 Phase Cut 51142661 123 Lm/W 4800 Lm 4000 K YES – to 10%
    Download Specifications LP-PVC22-144 Phase Cut 51152662 LP-PVC22-144 Phase Cut 51152662 130 Lm/W 5060 Lm 5000 K YES – to 10%
    Download Specifications LP-PVC22-144 DALI 51133663 LP-PVC22-144 DALI 51133663 117 Lm/W 4540 Lm 3000 K YES – to 1%
    Download Specifications LP-PVC22-144 DALI 51143664 LP-PVC22-144 DALI 51143664 123 Lm/W 4800 Lm 4000 K YES – to 1%
    Download Specifications LP-PVC22-144 DALI 51153665 LP-PVC22-144 DALI 51153665 130 Lm/W 5060 Lm 5000 K YES – to 1%
    LC Ceiling Style 39W
    model
    Article number LDT files CE Protocols
    Download Specifications LP-PVC22-144 51131657 LP-PVC22-144 51131657 LDT (2.81 KB) CE(145.99 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC22-144 51141658 LP-PVC22-144 51141658 LDT (2.81 KB) CE(145.99 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC22-144 51151659 LP-PVC22-144 51151659 LDT (2.82 KB) CE(145.99 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC22-144 Phase Cut 51132660 LP-PVC22-144 Phase Cut 51132660 LDT (2.82 KB) CE(146.00 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC22-144 Phase Cut 51142661 LP-PVC22-144 Phase Cut 51142661 LDT (2.83 KB) CE(146.00 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC22-144 Phase Cut 51152662 LP-PVC22-144 Phase Cut 51152662 LDT (2.83 KB) CE(146.00 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC22-144 DALI 51133663 LP-PVC22-144 DALI 51133663 LDT (2.83 KB) CE(146.01 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC22-144 DALI 51143664 LP-PVC22-144 DALI 51143664 LDT (2.83 KB) CE(146.01 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC22-144 DALI 51153665 LP-PVC22-144 DALI 51153665 LDT (2.83 KB) CE(146.01 KB) Protocol (2.79 MB)
