Features
| Luminous Flux up to | 3720 lm |
| Efficiency up to | 124 lm/W |
| Luminaire Input Power | 30 W |
| CRI | > 80 |
| LED | Samsung LM561B |
| Input Current AC | 0.130 A |
| Working Voltage AC | 220 – 240 V |
| Type of protection | IP33 |
| Life | 100 000 hours |
| Power Factor – Cos(φ) | ≥ 0.9 |
| Operating Temperature | -30 to +40 C° |
| Housing | Aluminium |
| Diffuser | PMMA |

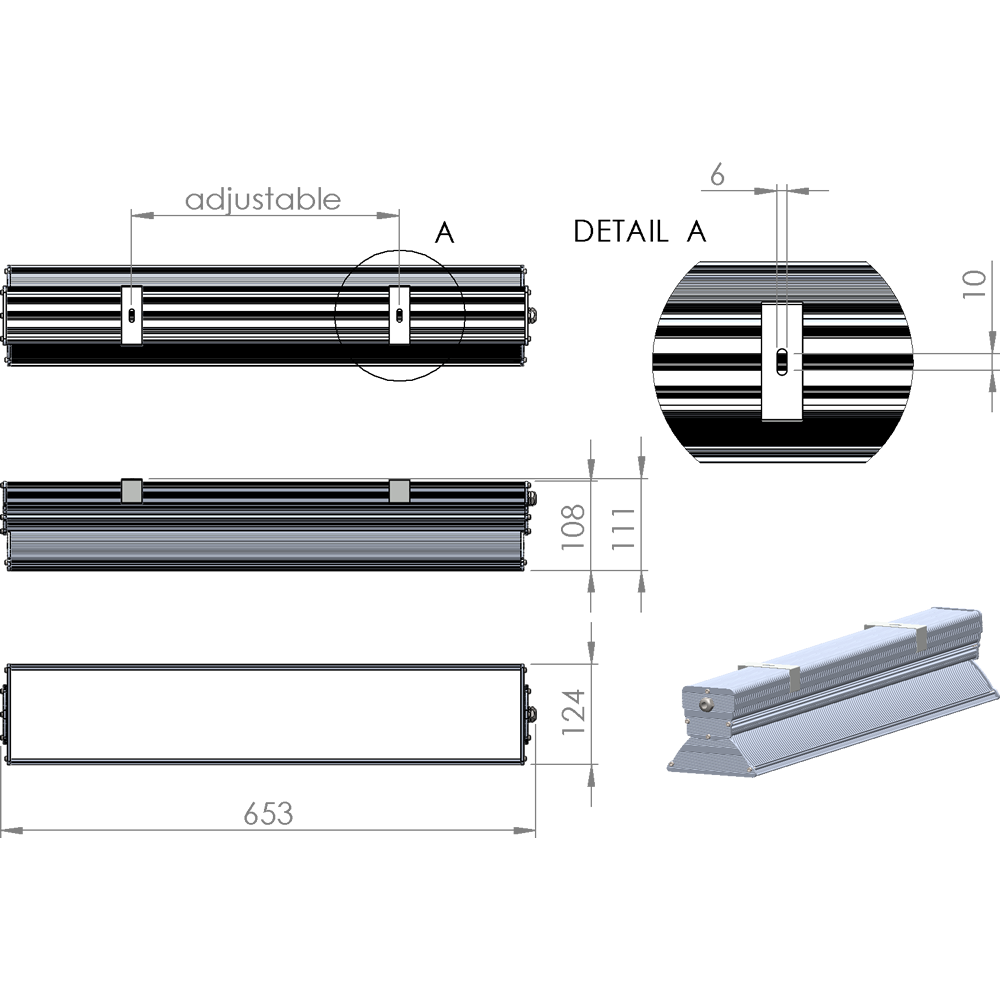

| Dimensions L x W x H | 653 x 124 x 111 mm |
| L5 Linear Igor Style 30W model |
Article number | Efficiency | Luminous Flux | CCT | Dimmable |
|---|---|---|---|---|---|
 LP-L5-P60-96 IG |
553311320 | 112 Lm/W | 3360 Lm | 3000 K | NO |
| LP-L5-P60-96 IG |
553411321 | 118 Lm/W | 3540 Lm | 4000 K | NO |
| LP-L5-P60-96 IG |
553511322 | 124 Lm/W | 3720 Lm | 5000 K | NO |
| LP-L5-P60-96 IG DALI |
553331323 | 112 Lm/W | 3360 Lm | 3000 K | YES – to 1% |
| LP-L5-P60-96 IG DALI |
553431324 | 118 Lm/W | 3540 Lm | 4000 K | YES – to 1% |
| LP-L5-P60-96 IG DALI |
553531325 | 124 Lm/W | 3720 Lm | 5000 K | YES – to 1% |
| LP-L5-P60-96 IG PWM |
553341326 | 112 Lm/W | 3360 Lm | 3000 K | YES – to 10% |
| LP-L5-P60-96 IG PWM |
553441327 | 118 Lm/W | 3540 Lm | 4000 K | YES – to 10% |
| LP-L5-P60-96 IG PWM |
553541328 | 124 Lm/W | 3720 Lm | 5000 K | YES – to 10% |
LDT
