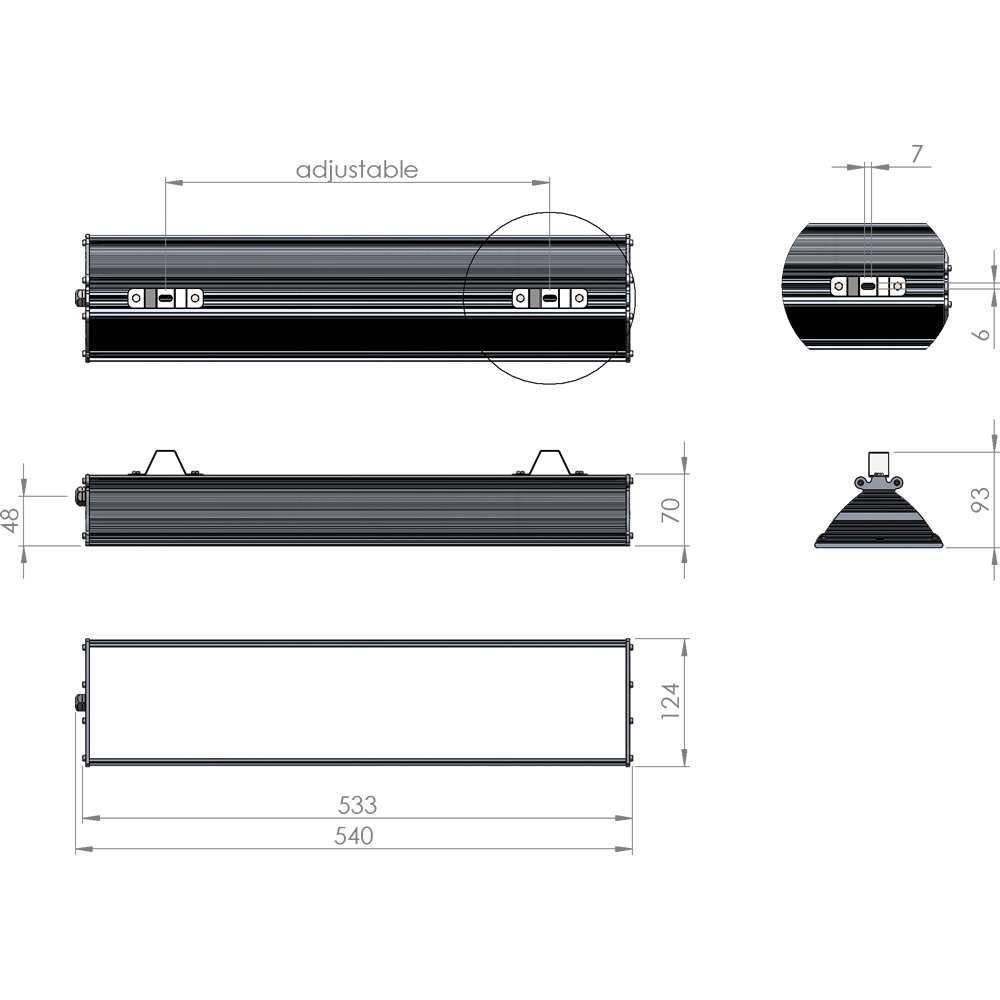

  • l5-50-bpsdrawing
  • l5_diagram
  • L5 Linear All In Style 20W LP-L5-P50-72 BPS

    L5 Linear All In Style LED Luminaires are another addition to our indoor linear LED lamps, but with built in power supply with low profile designed for direct replacement of currently existing fluorescent luminaires. It is made with IP54, so can be used in places with higher IP requirements.
    A2PLUS

    Applications:

    • Retail shops and supermarkets
    • Production facilities
    • Warehouses
    • Public buildings
    • Indoor parking areas

    SKU: 55512

    Features

    Luminous Flux up to 2480 lm
    Efficiency up to 124 lm/W
    Luminaire Input Power 20 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.086 A
    Working Voltage AC 220 – 240 V
    Type of protection IP54
    Life 100 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -30 to +40 C°
    Housing Aluminium
    Diffuser PMMA
    Dimensions L x W x H 540 x 124 x 93 mm
    L5 Linear All In Style 20W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L5-P50-72 BPS 555311437 LP-L5-P50-72 BPS 555311437 112 Lm/W 2240 Lm 3000 K NO
    Download Specifications LP-L5-P50-72 BPS 555411438 LP-L5-P50-72 BPS 555411438 118 Lm/W 2360 Lm 4000 K NO
    Download Specifications LP-L5-P50-72 BPS 555511439 LP-L5-P50-72 BPS 555511439 124 Lm/W 2480 Lm 5000 K NO
    Download Specifications LP-L5-P50-72 BPS DALI 555331440 LP-L5-P50-72 BPS DALI 555331440 112 Lm/W 2240 Lm 3000 K YES – to 1%
    Download Specifications LP-L5-P50-72 BPS DALI 555431441 LP-L5-P50-72 BPS DALI 555431441 118 Lm/W 2360 Lm 4000 K YES – to 1%
    Download Specifications LP-L5-P50-72 BPS DALI 555531442 LP-L5-P50-72 BPS DALI 555531442 124 Lm/W 2480 Lm 5000 K YES – to 1%
    Download Specifications LP-L5-P50-72 BPS PWM 555341443 LP-L5-P50-72 BPS PWM 555341443 112 Lm/W 2240 Lm 3000 K YES – to 10%
    Download Specifications LP-L5-P50-72 BPS PWM 555441444 LP-L5-P50-72 BPS PWM 555441444 118 Lm/W 2360 Lm 4000 K YES – to 10%
    Download Specifications LP-L5-P50-72 BPS PWM 555541445 LP-L5-P50-72 BPS PWM 555541445 124 Lm/W 2480 Lm 5000 K YES – to 10%
    L5 Linear All In Style 20W
    model
    Article number LDT files Protocols
    Download Specifications LP-L5-P50-72 BPS 555311437 LP-L5-P50-72 BPS 555311437 LDT (3.40 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P50-72 BPS 555411438 LP-L5-P50-72 BPS 555411438 LDT (3.40 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P50-72 BPS 555511439 LP-L5-P50-72 BPS 555511439 LDT (3.40 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P50-72 BPS DALI 555331440 LP-L5-P50-72 BPS DALI 555331440 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P50-72 BPS DALI 555431441 LP-L5-P50-72 BPS DALI 555431441 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P50-72 BPS DALI 555531442 LP-L5-P50-72 BPS DALI 555531442 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P50-72 BPS PWM 555341443 LP-L5-P50-72 BPS PWM 555341443 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P50-72 BPS PWM 555441444 LP-L5-P50-72 BPS PWM 555441444 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P50-72 BPS PWM 555541445 LP-L5-P50-72 BPS PWM 555541445 LDT (3.42 KB) Protocol (2.90 MB)
