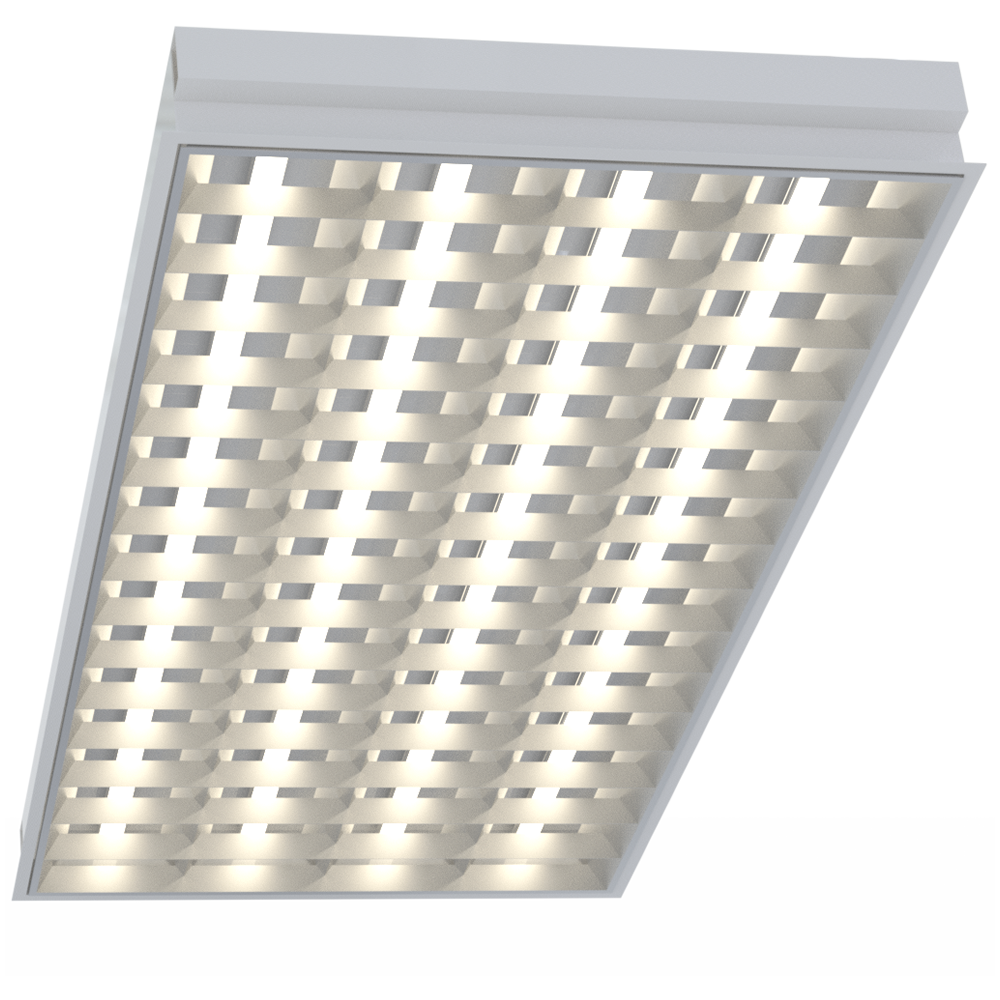

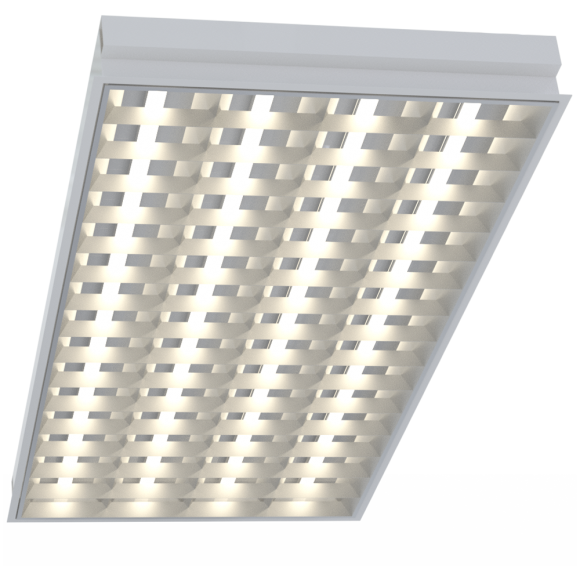

  • L3 Recessed Style 72W LP-L3-60×120

    L3 Recessed Style is used specially for modular ceilings with visible grid system. It offers unparalleled energy and maintenance savings compared to T5 and T8 solutions and maximum efficiency.
    A2PLUS

    Applications:

    • Offices
    • Foyers
    • Conference rooms
    • Corridors, entrances, stairwells

    SKU: 54101

    Features

    Luminous Flux up to 8640 lm
    Efficiency up to 120 lm/W
    Luminaire Input Power 72 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.313 A
    Working Voltage AC 220 – 240 V
    Type of protection IP20
    Life 80 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Steel Sheet
    Diffuser Polystyrol

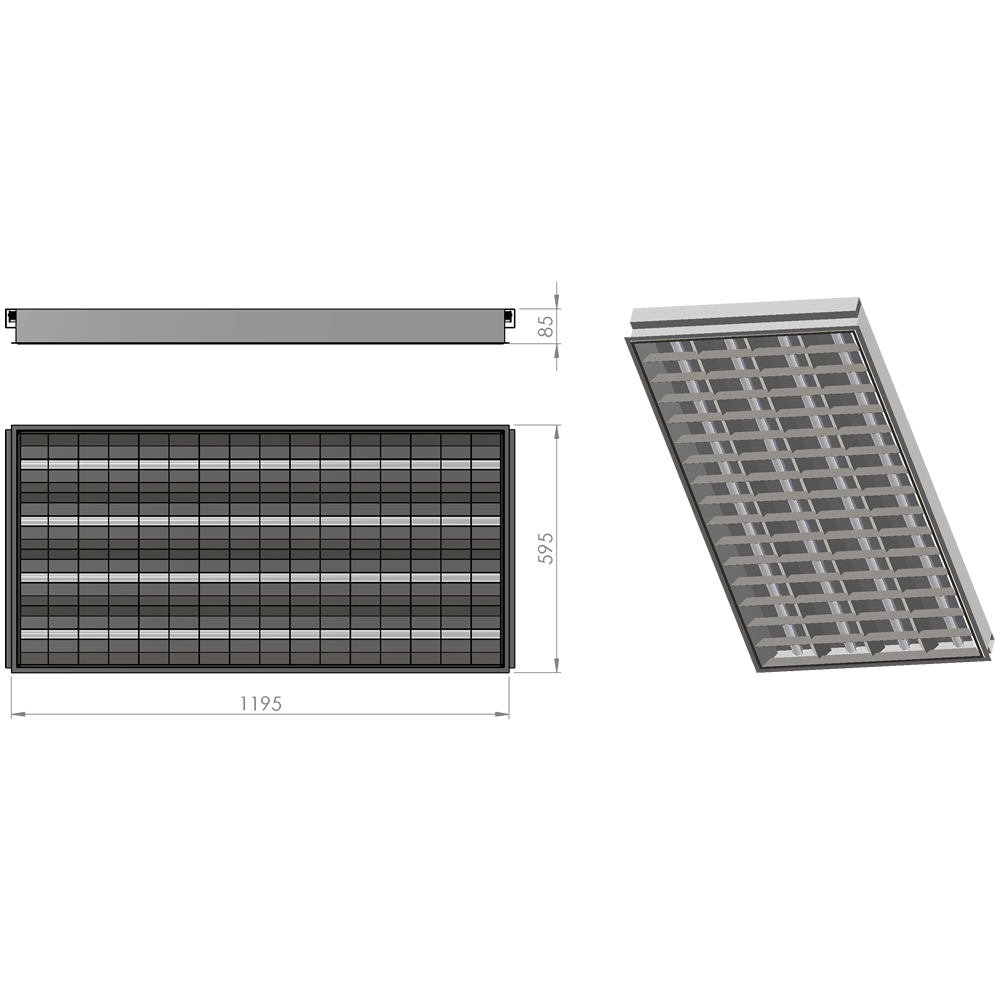

    Dimensions L x W x H 1195 x 595 x 85 mm
    L3 Recessed Style 72W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L3-60X120  541311104 LP-L3-60X120 541311104 108 Lm/W 7770 Lm 3000 K NO
    Download Specifications LP-L3-60X120  541411105 LP-L3-60X120 541411105 114 Lm/W 8200 Lm 4000 K NO
    Download Specifications LP-L3-60X120  541511106 LP-L3-60X120 541511106 120 Lm/W 8640 Lm 5000 K NO
    Download Specifications LP-L3-60X120 DALI 541331107 LP-L3-60X120 DALI 541331107 108 Lm/W 7770 Lm 3000 K YES – to 1%
    Download Specifications LP-L3-60X120 DALI 541431108 LP-L3-60X120 DALI 541431108 114 Lm/W 8200 Lm 4000 K YES – to 1%
    Download Specifications LP-L3-60X120 DALI 541531109 LP-L3-60X120 DALI 541531109 120 Lm/W 8640 Lm 5000 K YES – to 1%
    L3 Recessed Style 72W
    model
    Article number LDT files Protocols
    Download Specifications LP-L3-60X120  541311104 LP-L3-60X120 541311104 LDT (3.39 KB) Protocol (32.20 MB)
    Download Specifications LP-L3-60X120  541411105 LP-L3-60X120 541411105 LDT (3.39 KB) Protocol (32.20 MB)
    Download Specifications LP-L3-60X120  541511106 LP-L3-60X120 541511106 LDT (3.39 KB) Protocol (32.20 MB)
    Download Specifications LP-L3-60X120 DALI 541331107 LP-L3-60X120 DALI 541331107 LDT (3.41 KB) Protocol (32.20 MB)
    Download Specifications LP-L3-60X120 DALI 541431108 LP-L3-60X120 DALI 541431108 LDT (3.41 KB) Protocol (32.20 MB)
    Download Specifications LP-L3-60X120 DALI 541531109 LP-L3-60X120 DALI 541531109 LDT (3.41 KB) Protocol (32.20 MB)
