Home Retrofit LED Luminaires L3 Recessed Style L3 Recessed Style 18W LP-L3-60×30

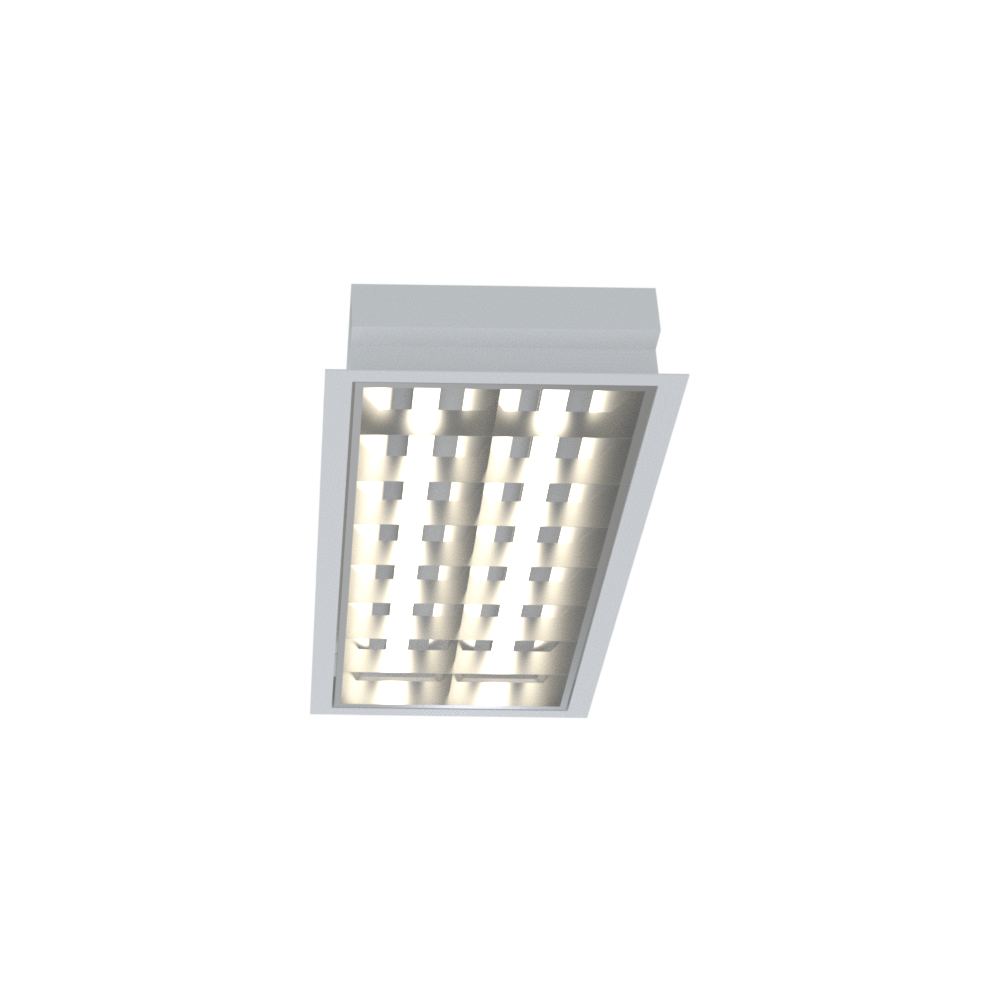

l3-60x30render

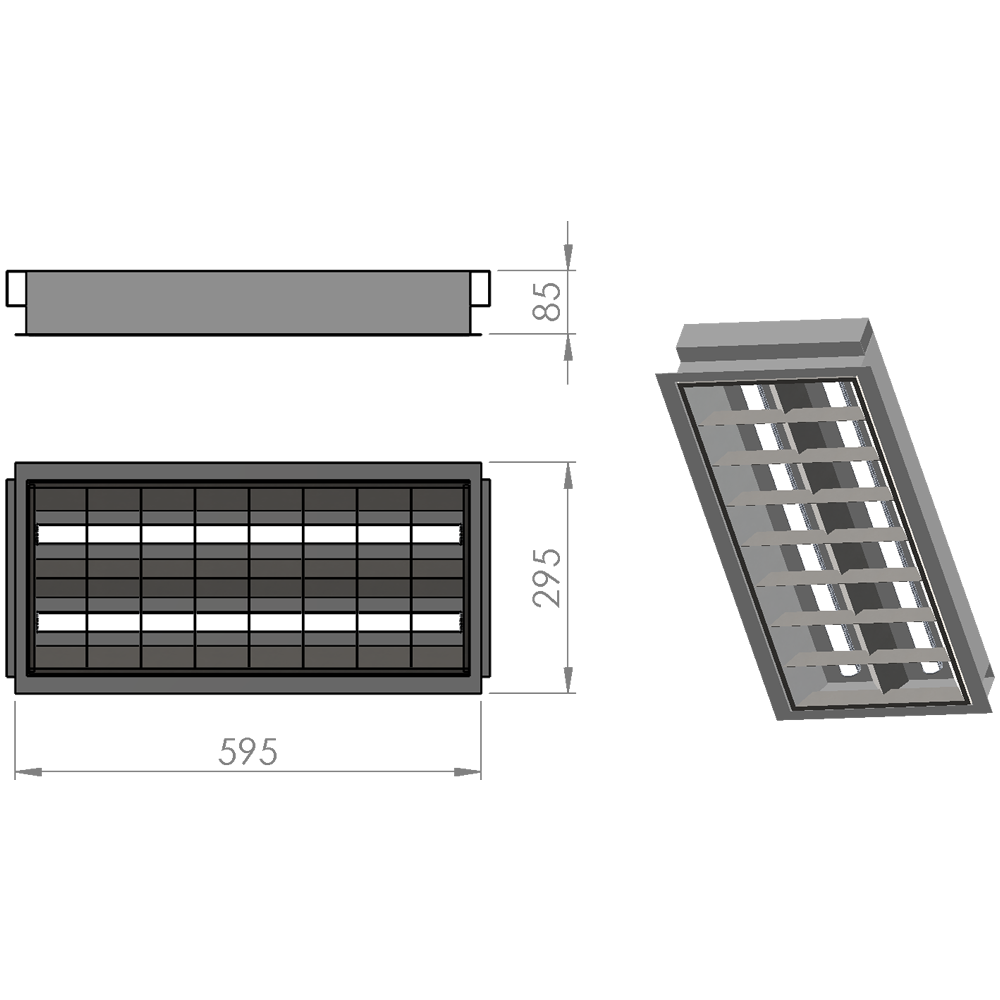

  • l3-60x30drawing

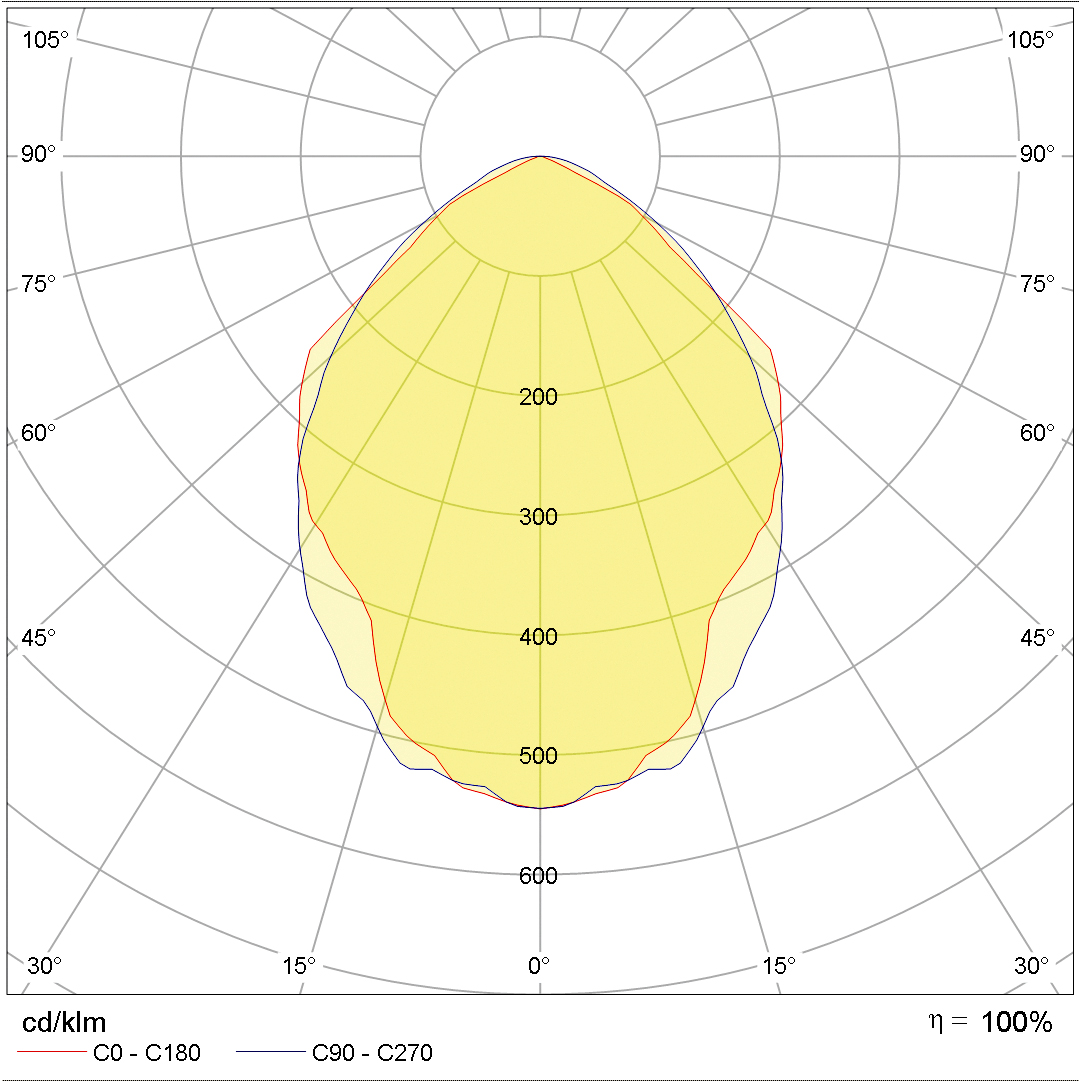

  • l3_tma2
  • L3 Recessed Style 18W LP-L3-60×30

    L3 Recessed Style is used specially for modular ceilings with visible grid system. It offers unparalleled energy and maintenance savings compared to T5 and T8 solutions and maximum efficiency.
    A1PLUS

    Applications:

    • Offices
    • Foyers
    • Conference rooms
    • Corridors, entrances, stairwells

    SKU: 54103

    Features

    Luminous Flux up to 1940 lm
    Efficiency up to 108 lm/W
    Luminaire Input Power 18 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.078 A
    Working Voltage AC 220 – 240 V
    Type of protection IP20
    Life 80 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Steel Sheet
    Diffuser Polystyrol
    Dimensions L x W x H 595 x 295 x 85 mm
    L3 Recessed Style 18W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L3-60X30  541311116 LP-L3-60X30 541311116 96 Lm/W 1720 Lm 3000 K NO
    Download Specifications LP-L3-60X30  541411117 LP-L3-60X30 541411117 102 Lm/W 1830 Lm 4000 K NO
    Download Specifications LP-L3-60X30  541511118 LP-L3-60X30 541511118 108 Lm/W 1940 Lm 5000 K NO
    Download Specifications LP-L3-60X30 DALI 541331119 LP-L3-60X30 DALI 541331119 96 Lm/W 1720 Lm 3000 K YES – to 1%
    Download Specifications LP-L3-60X30 DALI 541431120 LP-L3-60X30 DALI 541431120 102 Lm/W 1830 Lm 4000 K YES – to 1%
    Download Specifications LP-L3-60X30 DALI 541531121 LP-L3-60X30 DALI 541531121 108 Lm/W 1940 Lm 5000 K YES – to 1%
    L3 Recessed Style 18W
    model
    Article number LDT files Protocols
    Download Specifications LP-L3-60X30  541311116 LP-L3-60X30 541311116 LDT (3.39 KB) Protocol (2.83 MB)
    Download Specifications LP-L3-60X30  541411117 LP-L3-60X30 541411117 LDT (3.38 KB) Protocol (2.83 MB)
    Download Specifications LP-L3-60X30  541511118 LP-L3-60X30 541511118 LDT (3.38 KB) Protocol (2.83 MB)
    Download Specifications LP-L3-60X30 DALI 541331119 LP-L3-60X30 DALI 541331119 LDT (3.40 KB) Protocol (2.83 MB)
    Download Specifications LP-L3-60X30 DALI 541431120 LP-L3-60X30 DALI 541431120 LDT (3.40 KB) Protocol (2.83 MB)
    Download Specifications LP-L3-60X30 DALI 541531121 LP-L3-60X30 DALI 541531121 LDT (3.40 KB) Protocol (2.83 MB)
