Home Retrofit LED Luminaires L3 Linear Style L3 Linear Style 60W LP-L3-300-240
l3-s

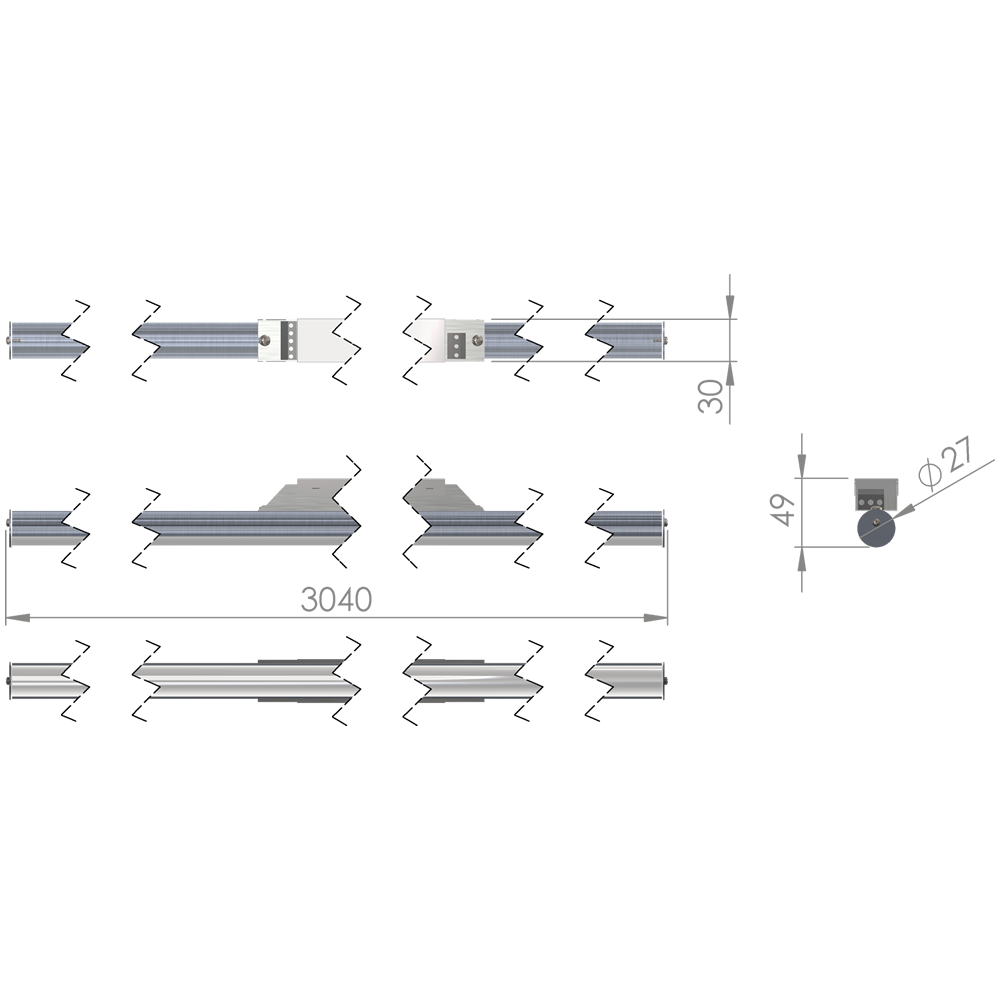

  • LP-L3-300drawing2
  • l3_linear
  • L3 Linear Style 60W LP-L3-300-240

    L3 Linear Style are LED luminaires with high lumen per meter and compact design. The diameter is 26mm with variety of lengths.
    A2PLUS

    Applications:

    • General illumination
    • Cove lighting
    • Shelf lighting

    SKU: 53001
    Category:

    Features

    Luminous Flux up to 8100 lm
    Efficiency up to 135 lm/W
    Luminaire Input Power 60 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.261 A
    Working Voltage AC 220 – 240 V
    Type of protection IP20
    Life 80 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Aluminium
    Diffuser Polystyrol
    Dimensions L x W x H 3040 x 27 mm
    L3 Linear Style 60W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L3-300-240 530311074 LP-L3-300-240 530311074 121 Lm/W 7260 Lm 3000 K NO
    Download Specifications LP-L3-300-240 530411075 LP-L3-300-240 530411075 128 Lm/W 7680 Lm 4000 K NO
    Download Specifications LP-L3-300-240 530511076 LP-L3-300-240 530511076 135 Lm/W 8100 Lm 5000 K NO
    Download Specifications LP-L3-300-240 DALI 530331077 LP-L3-300-240 DALI 530331077 121 Lm/W 7260 Lm 3000 K YES – to 1%
    Download Specifications LP-L3-300-240 DALI 530431078 LP-L3-300-240 DALI 530431078 128 Lm/W 7680 Lm 4000 K YES – to 1%
    Download Specifications LP-L3-300-240 DALI 530531079 LP-L3-300-240 DALI 530531079 135 Lm/W 8100 Lm 5000 K YES – to 1%
    L3 Linear Style 60W
    model
    Article number LDT files Protocols
    Download Specifications LP-L3-300-240 530311074 LP-L3-300-240 530311074 LDT (725.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-300-240 530411075 LP-L3-300-240 530411075 LDT (726.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-300-240 530511076 LP-L3-300-240 530511076 LDT (726.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-300-240 DALI 530331077 LP-L3-300-240 DALI 530331077 LDT (744.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-300-240 DALI 530431078 LP-L3-300-240 DALI 530431078 LDT (745.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-300-240 DALI 530531079 LP-L3-300-240 DALI 530531079 LDT (745.00 B) Protocol (2.47 MB)
