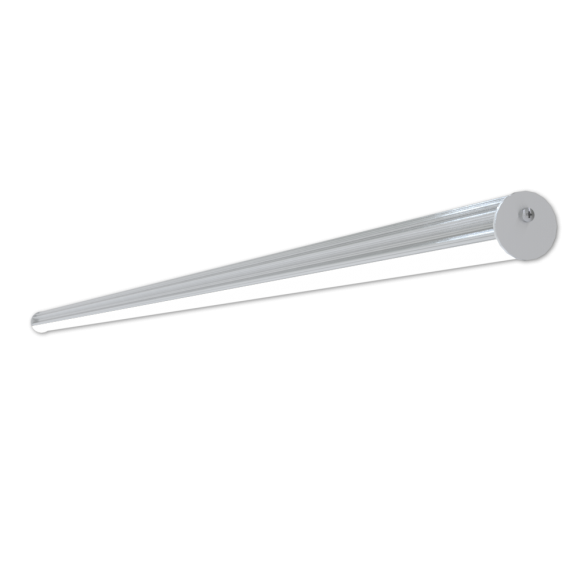

  • L3 Linear Style 28W LP-L3-120-96

    L3 Linear Style are LED luminaires with high lumen per meter and compact design. The diameter is 26mm with variety of lengths.
    A2PLUS

    Applications:

    • General illumination
    • Cove lighting
    • Shelf lighting

    SKU: 53003
    Category:

    Features

    Luminous Flux up to 3780 lm
    Efficiency up to 135 lm/W
    Luminaire Input Power 28 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.122 A
    Working Voltage AC 220 – 240 V
    Type of protection IP20
    Life 80 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Aluminium
    Diffuser Polystyrol
    Dimensions L x W x H 1240 x 27 mm
    Weight 0.6 kg
    L3 Linear Style 28W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L3-120-96 530311086 LP-L3-120-96 530311086 121 Lm/W 3380 Lm 3000 K NO
    Download Specifications LP-L3-120-96 530411087 LP-L3-120-96 530411087 128 Lm/W 3580 Lm 4067 K NO
    Download Specifications LP-L3-120-96 530511088 LP-L3-120-96 530511088 135 Lm/W 3780 Lm 5200 K NO
    Download Specifications LP-L3-120-96 DALI 530331089 LP-L3-120-96 DALI 530331089 121 Lm/W 3380 Lm 3000 K YES – to 1%
    Download Specifications LP-L3-120-96 DALI 530431090 LP-L3-120-96 DALI 530431090 128 Lm/W 3580 Lm 4067 K YES – to 1%
    Download Specifications LP-L3-120-96 DALI 530531091 LP-L3-120-96 DALI 530531091 135 Lm/W 3780 Lm 5200 K YES – to 1%
    L3 Linear Style 28W
    model
    Article number LDT files Protocols
    Download Specifications LP-L3-120-96 530311086 LP-L3-120-96 530311086 LDT (725.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-120-96 530411087 LP-L3-120-96 530411087 LDT (755.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-120-96 530511088 LP-L3-120-96 530511088 LDT (725.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-120-96 DALI 530331089 LP-L3-120-96 DALI 530331089 LDT (742.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-120-96 DALI 530431090 LP-L3-120-96 DALI 530431090 LDT (768.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-120-96 DALI 530531091 LP-L3-120-96 DALI 530531091 LDT (744.00 B) Protocol (2.47 MB)
