  • L3 Linear Style 56W LP-L3-60x60FR-192

    L3 Linear Style are LED luminaires with high lumen per meter and compact design. The diameter is 26mm with variety of lengths.
    A2PLUS

    Applications:

    • General illumination
    • Cove lighting
    • Shelf lighting

    SKU: 53005
    Category:

    Features

    Luminous Flux up to 7560 lm
    Efficiency up to 135 lm/W
    Luminaire Input Power 56 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.243 A
    Working Voltage AC 220 – 240 V
    Type of protection IP20
    Life 80 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Aluminium
    Diffuser Polystyrol

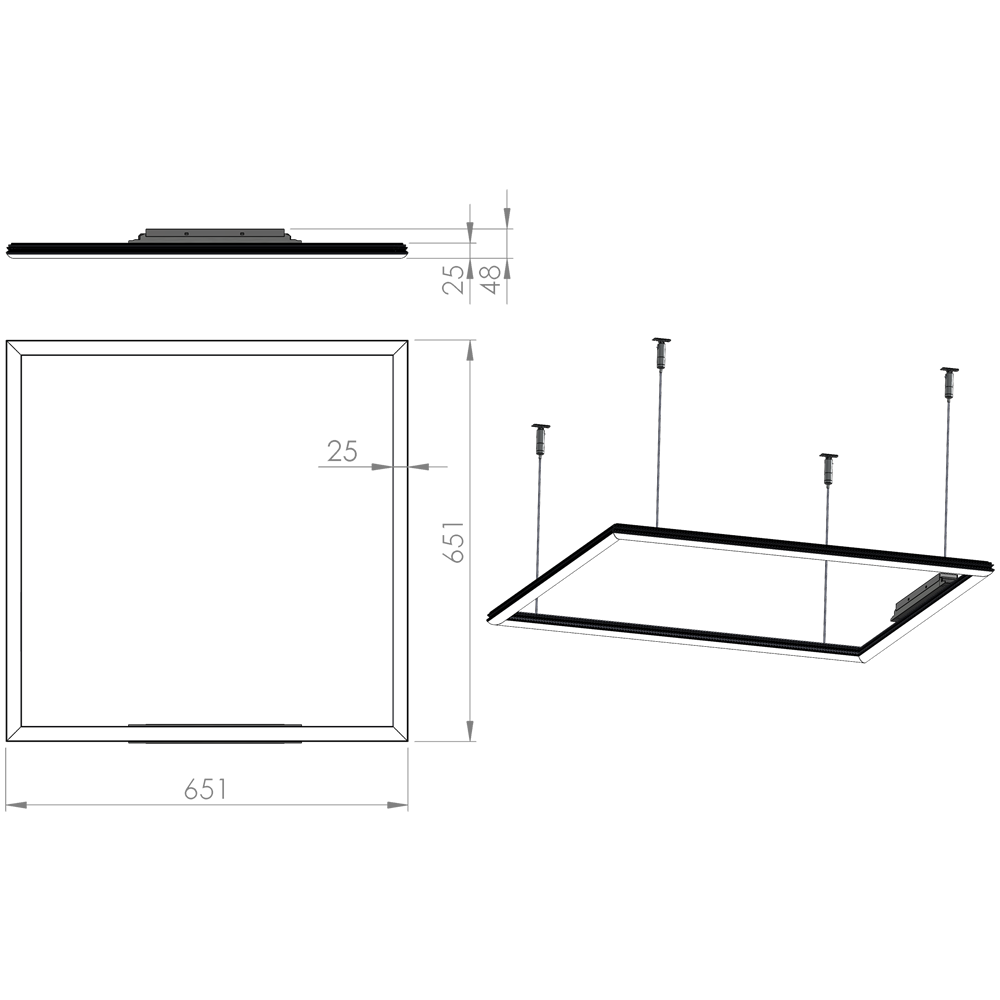

    Dimensions L x W x H 651 x 651 x 25 mm
    L3 Linear Style 56W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L3-60X60FR-192 530311098 LP-L3-60X60FR-192 530311098 121 Lm/W 6770 Lm 3000 K NO
    Download Specifications LP-L3-60X60FR-192 530411099 LP-L3-60X60FR-192 530411099 128 Lm/W 7160 Lm 4000 K NO
    Download Specifications LP-L3-60X60FR-192 530511100 LP-L3-60X60FR-192 530511100 135 Lm/W 7560 Lm 5000 K NO
    Download Specifications LP-L3-60X60FR-192 DALI 530331101 LP-L3-60X60FR-192 DALI 530331101 121 Lm/W 6770 Lm 3000 K YES – to 1%
    Download Specifications LP-L3-60X60FR-192 DALI 530431102 LP-L3-60X60FR-192 DALI 530431102 128 Lm/W 7160 Lm 4000 K YES – to 1%
    Download Specifications LP-L3-60X60FR-192 DALI 530531103 LP-L3-60X60FR-192 DALI 530531103 135 Lm/W 7560 Lm 5000 K YES – to 1%
    L3 Linear Style 56W
    model
    Article number LDT files Protocols
    Download Specifications LP-L3-60X60FR-192 530311098 LP-L3-60X60FR-192 530311098 LDT (754.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-60X60FR-192 530411099 LP-L3-60X60FR-192 530411099 LDT (755.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-60X60FR-192 530511100 LP-L3-60X60FR-192 530511100 LDT (753.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-60X60FR-192 DALI 530331101 LP-L3-60X60FR-192 DALI 530331101 LDT (771.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-60X60FR-192 DALI 530431102 LP-L3-60X60FR-192 DALI 530431102 LDT (772.00 B) Protocol (2.47 MB)
    Download Specifications LP-L3-60X60FR-192 DALI 530531103 LP-L3-60X60FR-192 DALI 530531103 LDT (773.00 B) Protocol (2.47 MB)
