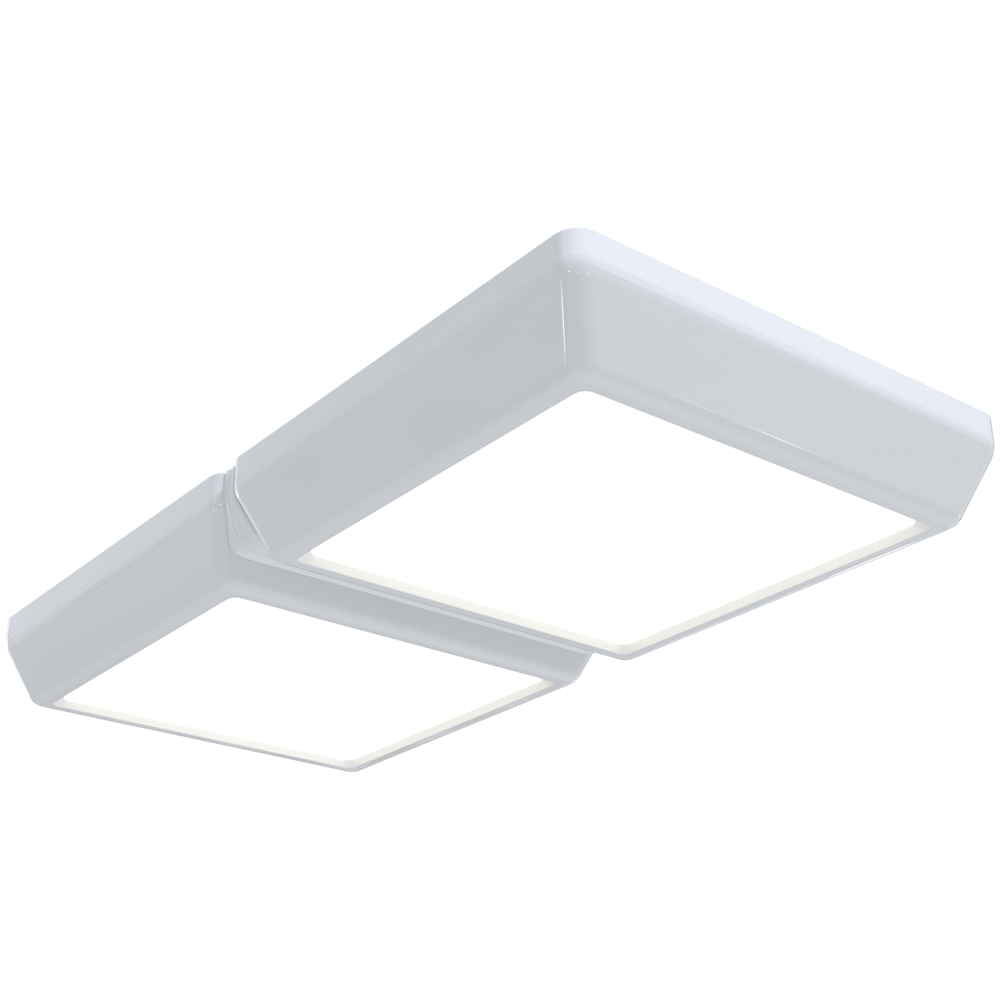

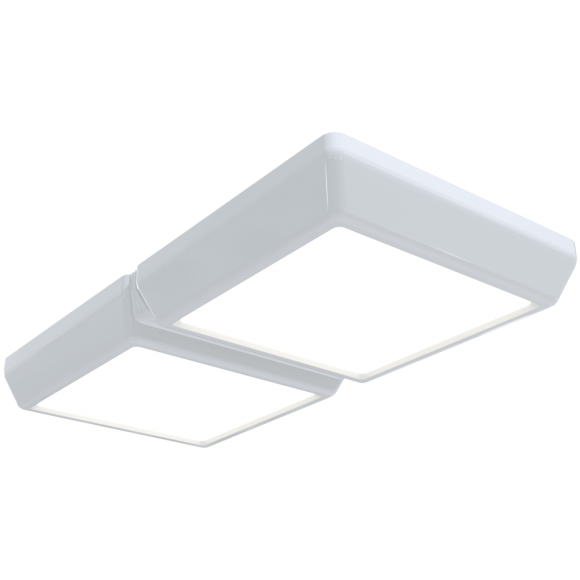

  • LC Ceiling Style 18W LP-PVC12-72

    LC Ceiling line is easy to install on ceilings with it’s smart designed mounting system. It offers unparalleled energy and maintenance savings compared to T5 and T8 solutions and maximum efficiency.
    A2PLUS

    Applications:

    • Offices
    • Foyers
    • Conference rooms
    • Corridors, entrances, stairwells

    SKU: 51106

    Features

    Luminous Flux up to 2320 lm
    Efficiency up to 130 lm/W
    Luminaire Input Power 18 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.078 A
    Working Voltage AC 220 – 240 V
    Type of protection IP20
    Life 100 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Polyvinyl chloride
    Diffuser PMMA

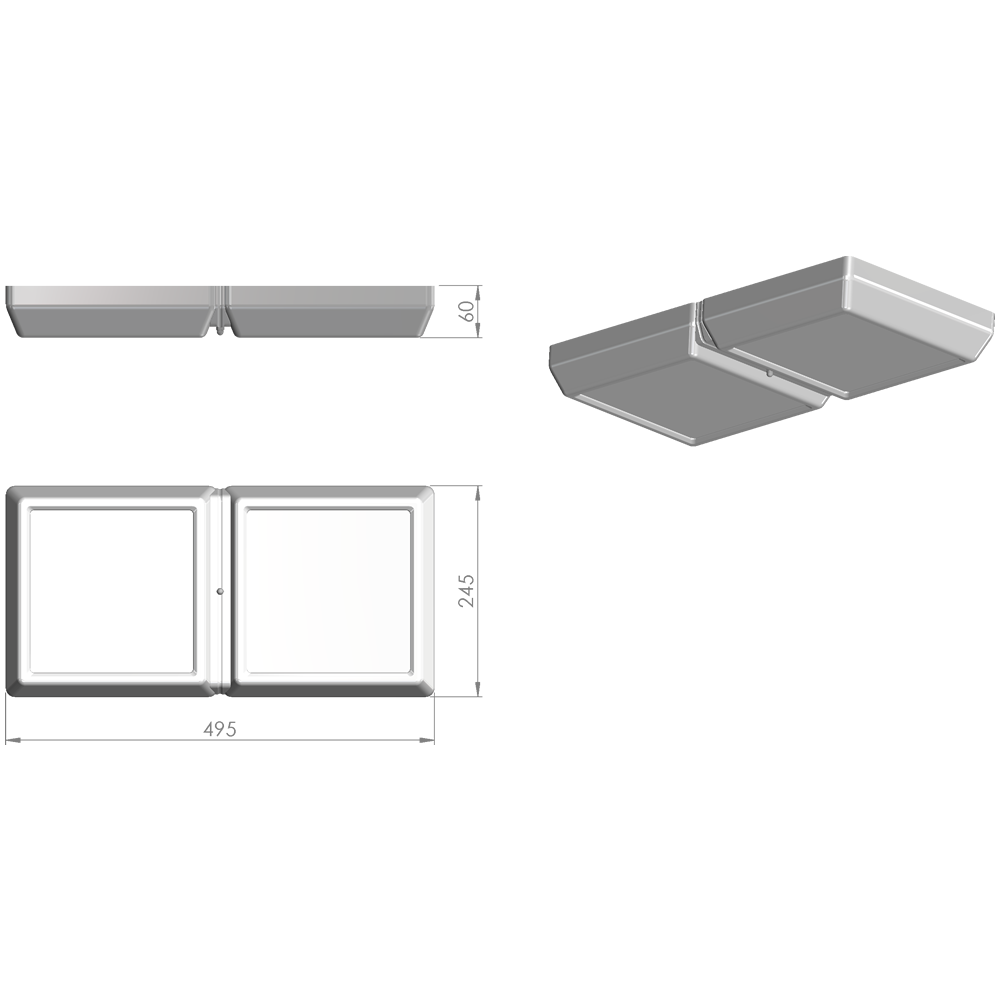

    Dimensions L x W x H 495 x 245 x 60 mm
    LC Ceiling Style 18W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-PVC12-72 51131603 LP-PVC12-72 51131603 117 Lm/W 2080 Lm 3000 K NO
    Download Specifications LP-PVC12-72 51141604 LP-PVC12-72 51141604 123 Lm/W 2200 Lm 4000 K NO
    Download Specifications LP-PVC12-72 51151605 LP-PVC12-72 51151605 130 Lm/W 2320 Lm 5000 K NO
    Download Specifications LP-PVC12-72 Phase Cut 51132606 LP-PVC12-72 Phase Cut 51132606 117 Lm/W 2080 Lm 3000 K YES – to 10%
    Download Specifications LP-PVC12-72 Phase Cut 51142607 LP-PVC12-72 Phase Cut 51142607 123 Lm/W 2200 Lm 4000 K YES – to 10%
    Download Specifications LP-PVC12-72 Phase Cut 51152608 LP-PVC12-72 Phase Cut 51152608 130 Lm/W 2320 Lm 5000 K YES – to 10%
    Download Specifications LP-PVC12-72 DALI 51133609 LP-PVC12-72 DALI 51133609 117 Lm/W 2080 Lm 3000 K YES – to 1%
    Download Specifications LP-PVC12-72 DALI 51143610 LP-PVC12-72 DALI 51143610 123 Lm/W 2200 Lm 4000 K YES – to 1%
    Download Specifications LP-PVC12-72 DALI 51153611 LP-PVC12-72 DALI 51153611 130 Lm/W 2320 Lm 5000 K YES – to 1%
    LC Ceiling Style 18W
    model
    Article number LDT files CE Protocols
    Download Specifications LP-PVC12-72 51131603 LP-PVC12-72 51131603 LDT (2.81 KB) CE(145.98 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC12-72 51141604 LP-PVC12-72 51141604 LDT (2.81 KB) CE(145.98 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC12-72 51151605 LP-PVC12-72 51151605 LDT (2.81 KB) CE(145.98 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC12-72 Phase Cut 51132606 LP-PVC12-72 Phase Cut 51132606 LDT (2.82 KB) CE(145.97 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC12-72 Phase Cut 51142607 LP-PVC12-72 Phase Cut 51142607 LDT (2.82 KB) CE(145.97 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC12-72 Phase Cut 51152608 LP-PVC12-72 Phase Cut 51152608 LDT (2.82 KB) CE(145.97 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC12-72 DALI 51133609 LP-PVC12-72 DALI 51133609 LDT (2.83 KB) CE(145.98 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC12-72 DALI 51143610 LP-PVC12-72 DALI 51143610 LDT (2.83 KB) CE(145.98 KB) Protocol (2.79 MB)
    Download Specifications LP-PVC12-72 DALI 51153611 LP-PVC12-72 DALI 51153611 LDT (2.83 KB) CE(145.98 KB) Protocol (2.79 MB)
