L5 Linear Style 30W LP-L5-P60-96

L5 Linear style LED Luminaires are specially designed for supermarkets and shops. This series are designed with compact dimensions and flexible mounting of the power supply to match the existing cable infrastructure.

Applications:

Retail shops and supermarkets
Production facilities
Warehouses
Public buildings

SKU: 55209

Category: L5 Linear Style

Description
Downloads

Features

Luminous Flux up to	3720 lm
Efficiency up to	124 lm/W
Luminaire Input Power	30 W
CRI	> 80
LED	Samsung LM561B
Input Current AC	0.130 A
Working Voltage AC	220 – 240 V
Type of protection	IP20

Life	100 000 hours
Power Factor – Cos(φ)	≥ 0.9
Operating Temperature	-30 to +40 C°
Housing	Aluminium
Diffuser	PMMA

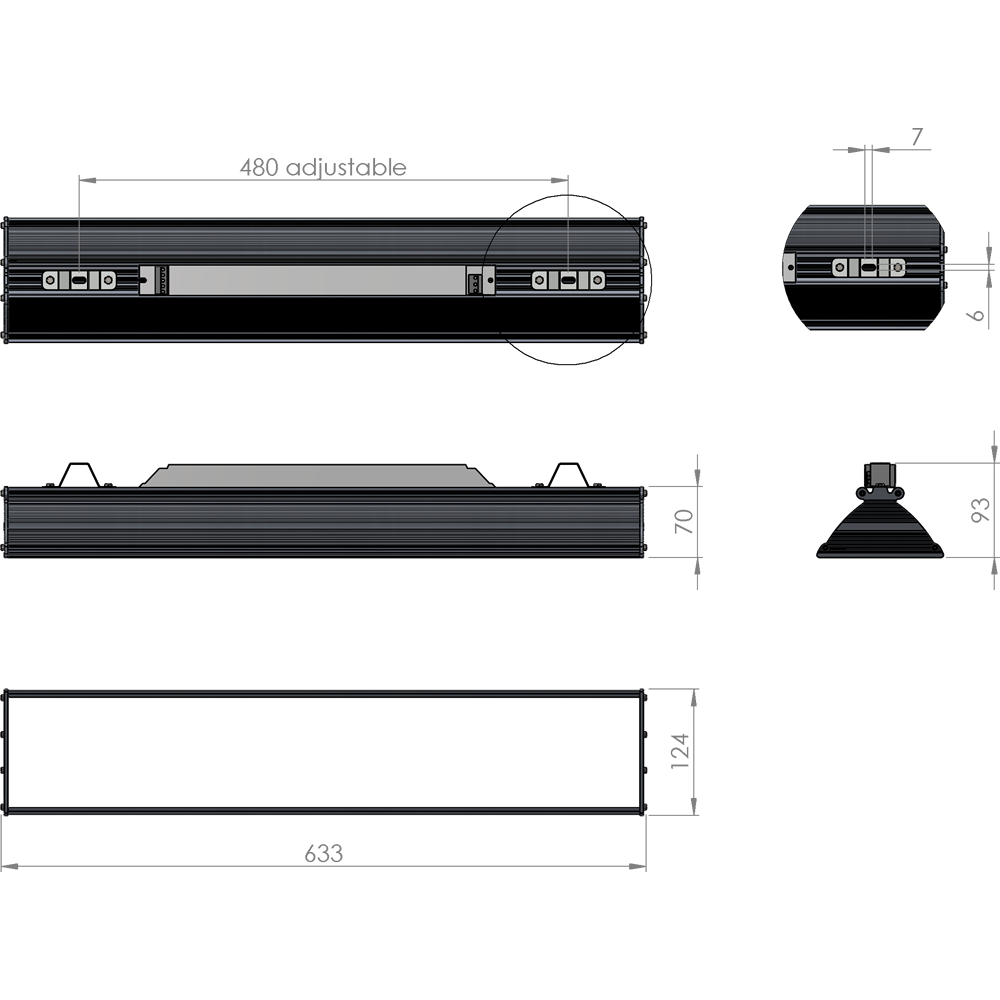

Dimensions L x W x H	633 x 124 x 93 mm

L5 Linear Style 30W model	Article number	Efficiency	Luminous Flux	CCT	Dimmable
LP-L5-P60-96	552311230	112 Lm/W	3360 Lm	3000 K	NO
LP-L5-P60-96	552411231	118 Lm/W	3540 Lm	4000 K	NO
LP-L5-P60-96	552511232	124 Lm/W	3720 Lm	5000 K	NO
LP-L5-P60-96 DALI	552331233	112 Lm/W	3360 Lm	3000 K	YES – to 1%
LP-L5-P60-96 DALI	552431234	118 Lm/W	3540 Lm	4000 K	YES – to 1%
LP-L5-P60-96 DALI	552531235	124 Lm/W	3720 Lm	5000 K	YES – to 1%
LP-L5-P60-96 PWM	552341236	112 Lm/W	3360 Lm	3000 K	YES – to 10%
LP-L5-P60-96 PWM	552441237	118 Lm/W	3540 Lm	4000 K	YES – to 10%
LP-L5-P60-96 PWM	552541238	124 Lm/W	3720 Lm	5000 K	YES – to 10%

L5 Linear Style 30W model	Article number	LDT files	Protocols
LP-L5-P60-96	552311230	LDT (3.39 KB)	Protocol (2.90 MB)
LP-L5-P60-96	552411231	LDT (3.39 KB)	Protocol (2.90 MB)
LP-L5-P60-96	552511232	LDT (3.39 KB)	Protocol (2.90 MB)
LP-L5-P60-96 DALI	552331233	LDT (3.40 KB)	Protocol (2.90 MB)
LP-L5-P60-96 DALI	552431234	LDT (3.41 KB)	Protocol (2.90 MB)
LP-L5-P60-96 DALI	552531235	LDT (3.41 KB)	Protocol (2.90 MB)
LP-L5-P60-96 PWM	552341236	LDT (3.40 KB)	Protocol (2.90 MB)
LP-L5-P60-96 PWM	552441237	LDT (3.40 KB)	Protocol (2.90 MB)
LP-L5-P60-96 PWM	552541238	LDT (3.40 KB)	Protocol (2.90 MB)
