L5 Linear Style 60W LP-L5-P300-240

L5 Linear style LED Luminaires are specially designed for supermarkets and shops. This series are designed with compact dimensions and flexible mounting of the power supply to match the existing cable infrastructure.

Applications:

Retail shops and supermarkets
Production facilities
Warehouses
Public buildings

SKU: 55201

Category: L5 Linear Style

Description
Downloads

Features

Luminous Flux up to	8000 lm
Efficiency up to	133 lm/W
Luminaire Input Power	60 W
CRI	> 80
LED	Samsung LM561B
Input Current AC	0.260 A
Working Voltage AC	220 – 240 V
Type of protection	IP20

Life	100 000 hours
Power Factor – Cos(φ)	≥ 0.9
Operating Temperature	-30 to +40 C°
Housing	Aluminium
Diffuser	PMMA

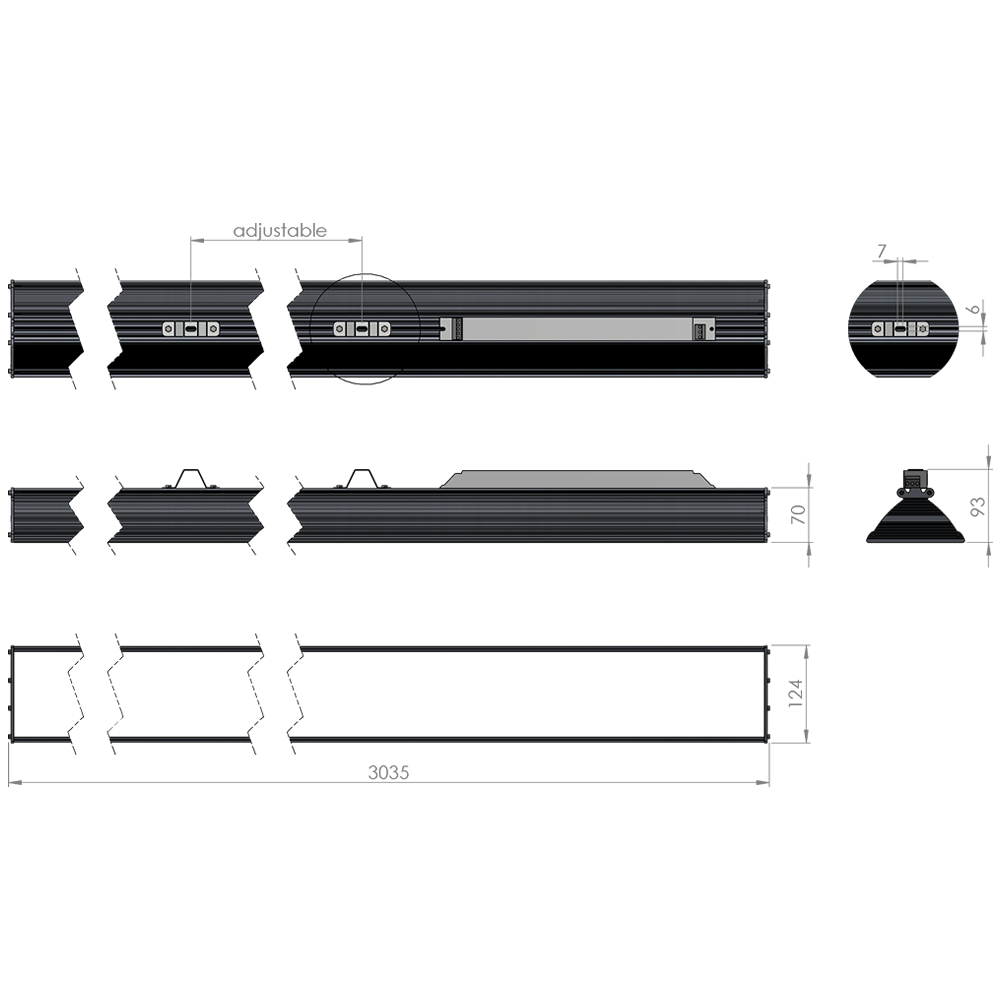

Dimensions L x W x H	3035 x 124 x 93 mm
Weight	5.2 kg

L5 Linear Style 60W model	Article number	Efficiency	Luminous Flux	CCT	Dimmable
LP-L5-P300-240	552311158	120 Lm/W	7160 Lm	3000 K	NO
LP-L5-P300-240	552411159	126 Lm/W	7580 Lm	4000 K	NO
LP-L5-P300-240	552511160	133 Lm/W	8000 Lm	5000 K	NO
LP-L5-P300-240 DALI	552331161	120 Lm/W	7160 Lm	3000 K	YES – to 1%
LP-L5-P300-240 DALI	552431162	126 Lm/W	7580 Lm	4000 K	YES – to 1%
LP-L5-P300-240 DALI	552531163	133 Lm/W	8000 Lm	5000 K	YES – to 1%
LP-L5-P300-240 PWM	552341164	120 Lm/W	7160 Lm	3000 K	YES – to 10%
LP-L5-P300-240 PWM	552441165	126 Lm/W	7580 Lm	4000 K	YES – to 10%
LP-L5-P300-240 PWM	552541166	133 Lm/W	8000 Lm	5000 K	YES – to 10%

L5 Linear Style 60W model	Article number	LDT files	Protocols
LP-L5-P300-240	552311158	LDT (2.87 KB)	Protocol (2.57 MB)
LP-L5-P300-240	552411159	LDT (2.87 KB)	Protocol (2.57 MB)
LP-L5-P300-240	552511160	LDT (2.87 KB)	Protocol (2.57 MB)
LP-L5-P300-240 DALI	552331161	LDT (2.89 KB)	Protocol (2.57 MB)
LP-L5-P300-240 DALI	552431162	LDT (2.89 KB)	Protocol (2.57 MB)
LP-L5-P300-240 DALI	552531163	LDT (2.89 KB)	Protocol (2.57 MB)
LP-L5-P300-240 PWM	552341164	LDT (2.89 KB)	Protocol (2.57 MB)
LP-L5-P300-240 PWM	552441165	LDT (2.89 KB)	Protocol (2.57 MB)
LP-L5-P300-240 PWM	552541166	LDT (2.89 KB)	Protocol (2.57 MB)
