Home Linear LED Luminaires L5 Linear All In Style L5 Linear All In Style 20W LP-L5-P90-72 BPS
L5bps

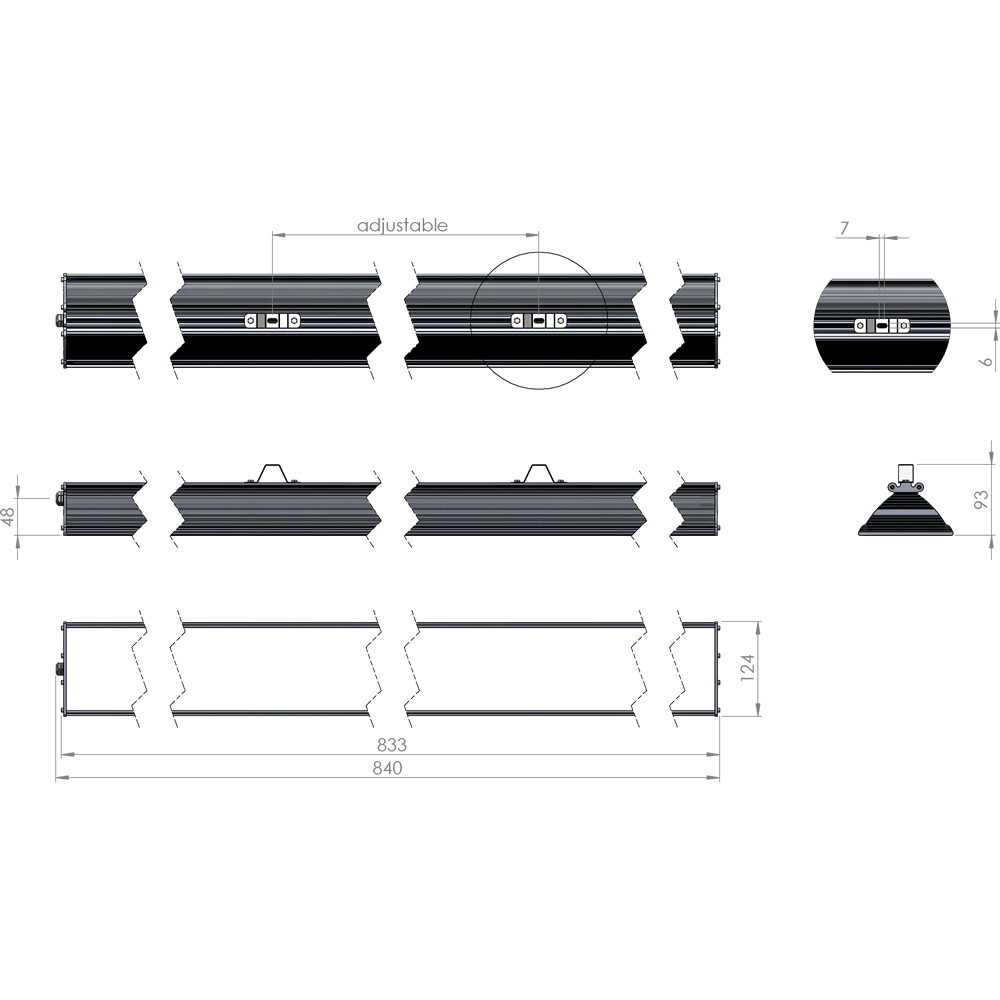

  • l5-90-bpsdrawing
  • l5_diagram
  • L5 Linear All In Style 20W LP-L5-P90-72 BPS

    L5 Linear All In Style LED Luminaires are another addition to our indoor linear LED lamps, but with built in power supply with low profile designed for direct replacement of currently existing fluorescent luminaires. It is made with IP54, so can be used in places with higher IP requirements.
    A2PLUS

    Applications:

    • Retail shops and supermarkets
    • Production facilities
    • Warehouses
    • Public buildings
    • Indoor parking areas

    SKU: 55508

    Features

    Luminous Flux up to 2480 lm
    Efficiency up to 124 lm/W
    Luminaire Input Power 20 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.086 A
    Working Voltage AC 220 – 240 V
    Type of protection IP54
    Life 100 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -30 to +40 C°
    Housing Aluminium
    Diffuser PMMA
    Dimensions L x W x H 840 x 124 x 93 mm
    L5 Linear All In Style 20W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L5-P90-72 BPS 555311401 LP-L5-P90-72 BPS 555311401 112 Lm/W 2240 Lm 3000 K NO
    Download Specifications LP-L5-P90-72 BPS 555411402 LP-L5-P90-72 BPS 555411402 118 Lm/W 2360 Lm 4000 K NO
    Download Specifications LP-L5-P90-72 BPS 555511403 LP-L5-P90-72 BPS 555511403 124 Lm/W 2480 Lm 5000 K NO
    Download Specifications LP-L5-P90-72 BPS DALI 555331404 LP-L5-P90-72 BPS DALI 555331404 112 Lm/W 2240 Lm 3000 K YES – to 1%
    Download Specifications LP-L5-P90-72 BPS DALI 555431405 LP-L5-P90-72 BPS DALI 555431405 118 Lm/W 2360 Lm 4000 K YES – to 1%
    Download Specifications LP-L5-P90-72 BPS DALI 555531406 LP-L5-P90-72 BPS DALI 555531406 124 Lm/W 2480 Lm 5000 K YES – to 1%
    Download Specifications LP-L5-P90-72 BPS PWM 555341407 LP-L5-P90-72 BPS PWM 555341407 112 Lm/W 2240 Lm 3000 K YES – to 10%
    Download Specifications LP-L5-P90-72 BPS PWM 555441408 LP-L5-P90-72 BPS PWM 555441408 118 Lm/W 2360 Lm 4000 K YES – to 10%
    Download Specifications LP-L5-P90-72 BPS PWM 555541409 LP-L5-P90-72 BPS PWM 555541409 124 Lm/W 2480 Lm 5000 K YES – to 10%
    L5 Linear All In Style 20W
    model
    Article number LDT files Protocols
    Download Specifications LP-L5-P90-72 BPS 555311401 LP-L5-P90-72 BPS 555311401 LDT (3.40 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P90-72 BPS 555411402 LP-L5-P90-72 BPS 555411402 LDT (3.40 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P90-72 BPS 555511403 LP-L5-P90-72 BPS 555511403 LDT (3.40 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P90-72 BPS DALI 555331404 LP-L5-P90-72 BPS DALI 555331404 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P90-72 BPS DALI 555431405 LP-L5-P90-72 BPS DALI 555431405 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P90-72 BPS DALI 555531406 LP-L5-P90-72 BPS DALI 555531406 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P90-72 BPS PWM 555341407 LP-L5-P90-72 BPS PWM 555341407 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P90-72 BPS PWM 555441408 LP-L5-P90-72 BPS PWM 555441408 LDT (3.42 KB) Protocol (2.90 MB)
    Download Specifications LP-L5-P90-72 BPS PWM 555541409 LP-L5-P90-72 BPS PWM 555541409 LDT (3.42 KB) Protocol (2.90 MB)
