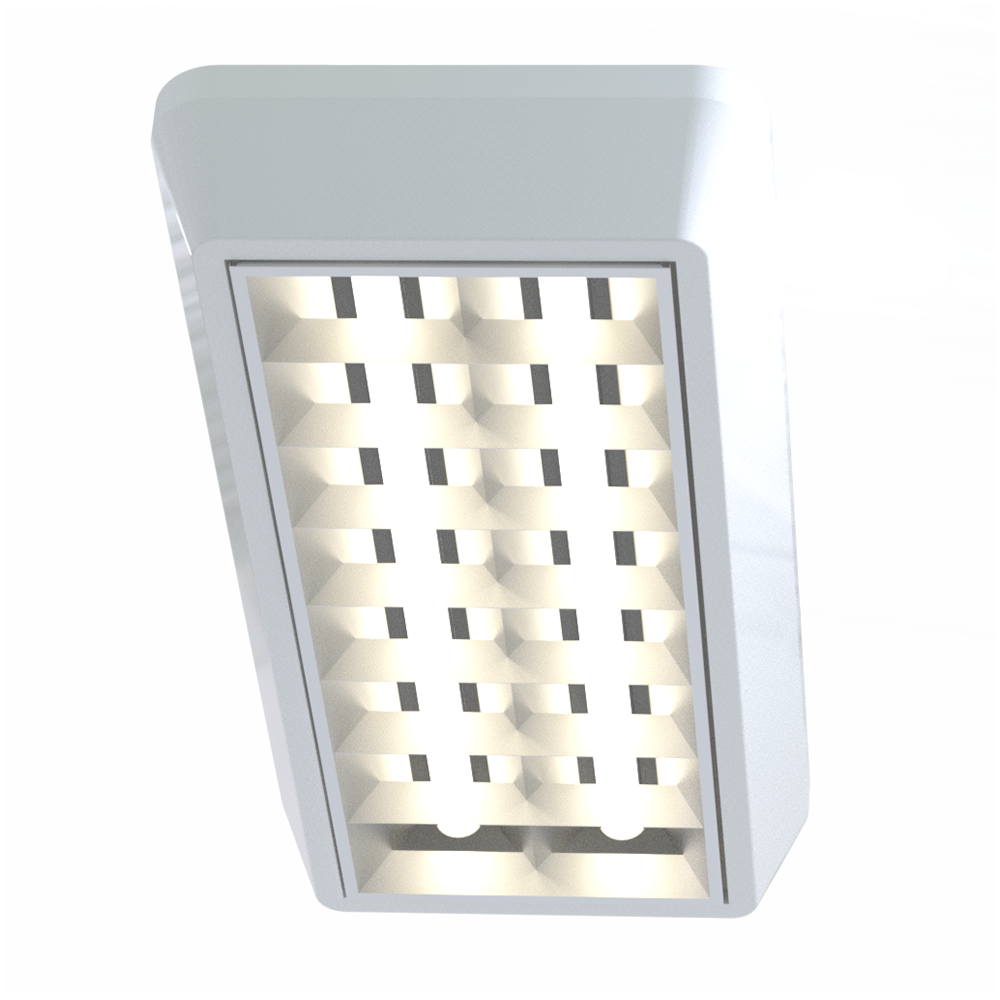

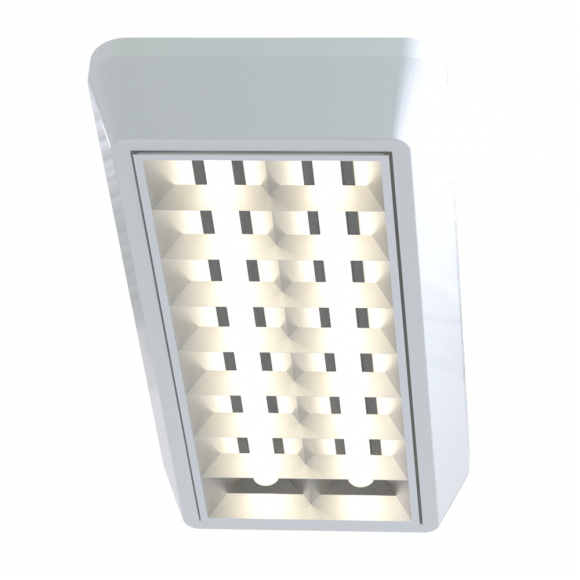

L3 Ceiling Style 18W LP-L3-60×30 OM

L3 Ceiling style is easy to install on ceilings with it’s conventional fluorescent-like housing. It offers unparalleled energy cost savings compared to T5 and T8 solutions and maximum efficiency.

Applications:

Offices
Foyers
Conference rooms
Corridors, entrances, stairwells

SKU: 54203

Category: L3 Ceiling Style

Description
Downloads

Features

Luminous Flux up to	1940 lm
Efficiency up to	108 lm/W
Luminaire Input Power	18 W
CRI	> 80
LED	Samsung LM561B
Input Current AC	0.078 A
Working Voltage AC	220 – 240 V
Type of protection	IP20

Life	80 000 hours
Power Factor – Cos(φ)	≥ 0.9
Operating Temperature	-20 to +40 C°
Housing	Steel Sheet
Diffuser	Polystyrol

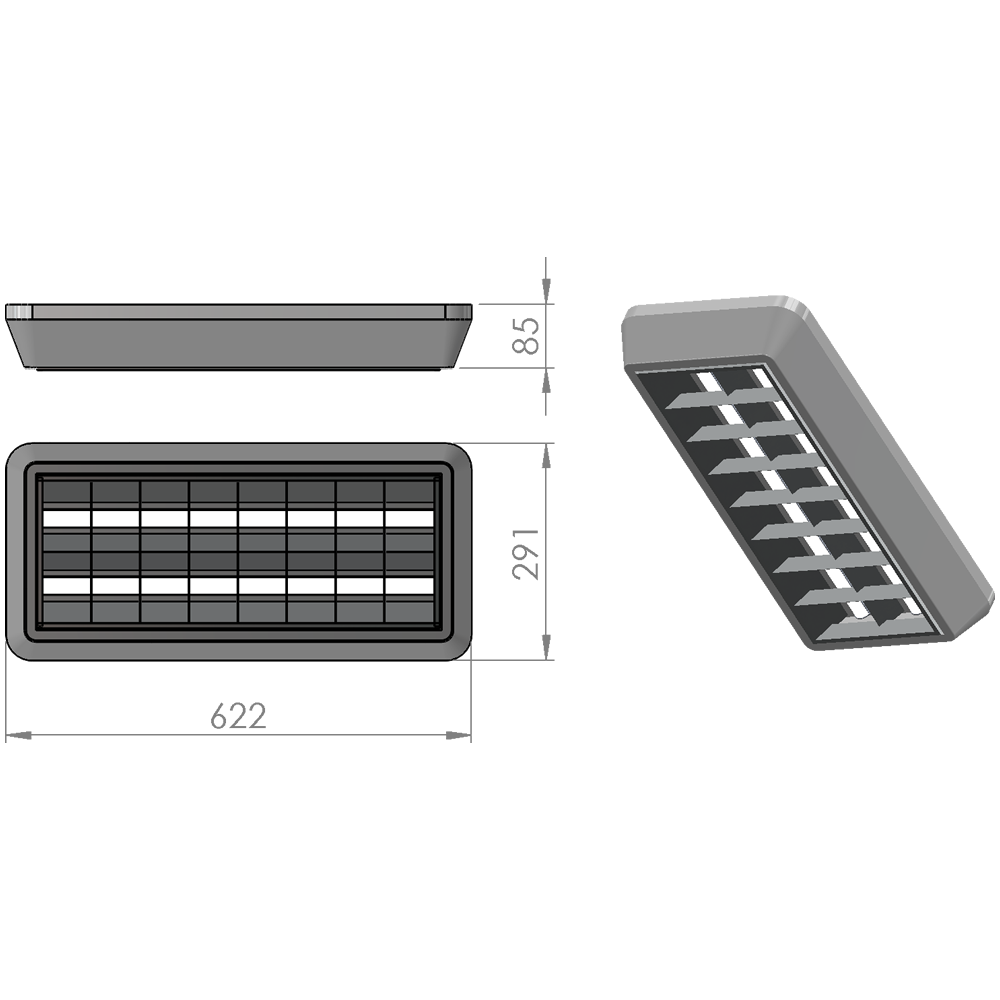

Dimensions L x W x H	622 x 291 x 85 mm

L3 Ceiling Style 18W model	Article number	Efficiency	Luminous Flux	CCT	Dimmable
LP-L3-60X30 OM	542311140	96 Lm/W	1720 Lm	3000 K	NO
LP-L3-60X30 OM	542411141	102 Lm/W	1830 Lm	4000 K	NO
LP-L3-60X30 OM	542511142	108 Lm/W	1940 Lm	5000 K	NO
LP-L3-60X30 OM DALI	542331143	96 Lm/W	1720 Lm	3000 K	YES – to 1%
LP-L3-60X30 OM DALI	542431144	102 Lm/W	1830 Lm	4000 K	YES – to 1%
LP-L3-60X30 OM DALI	542531145	108 Lm/W	1940 Lm	5000 K	YES – to 1%

L3 Ceiling Style 18W model	Article number	LDT files	Protocols
LP-L3-60X30 OM	542311140	LDT (3.40 KB)	Protocol (2.83 MB)
LP-L3-60X30 OM	542411141	LDT (3.39 KB)	Protocol (2.83 MB)
LP-L3-60X30 OM	542511142	LDT (3.40 KB)	Protocol (2.83 MB)
LP-L3-60X30 OM DALI	542331143	LDT (3.42 KB)	Protocol (2.83 MB)
LP-L3-60X30 OM DALI	542431144	LDT (3.41 KB)	Protocol (2.83 MB)
LP-L3-60X30 OM DALI	542531145	LDT (3.42 KB)	Protocol (2.83 MB)
