Home Retrofit LED Luminaires L3 Ceiling Style L3 Ceiling Style 72W LP-L3-60×120 OM

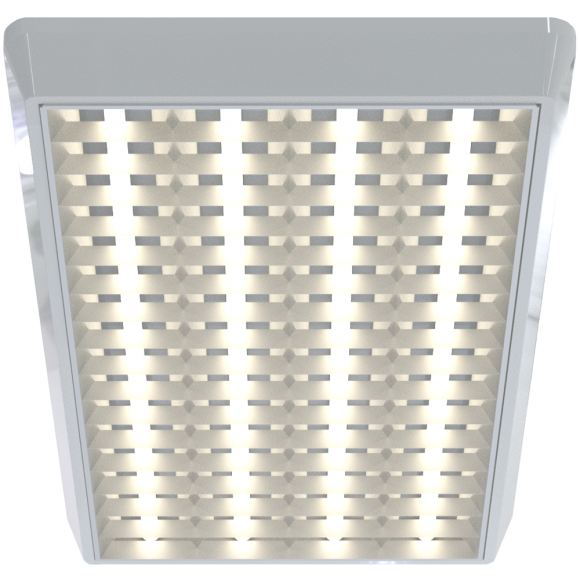

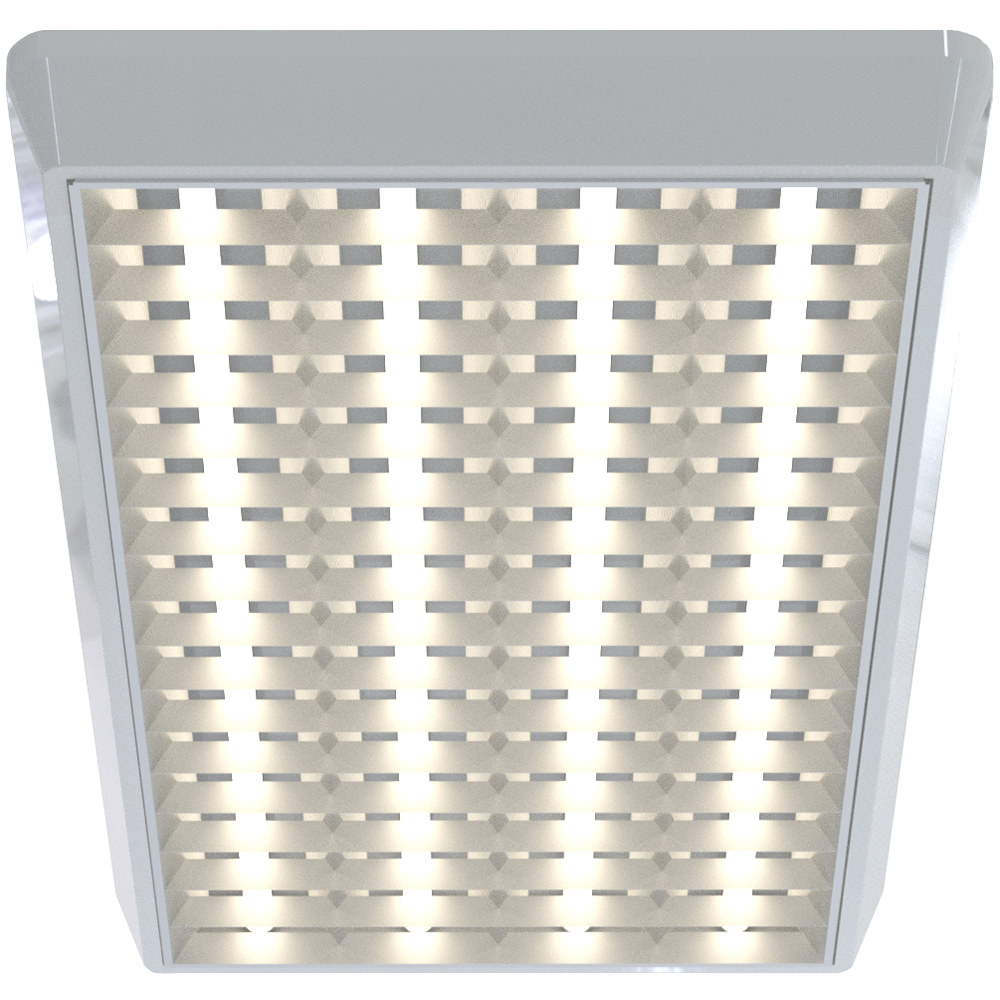

l3-60x120omrender

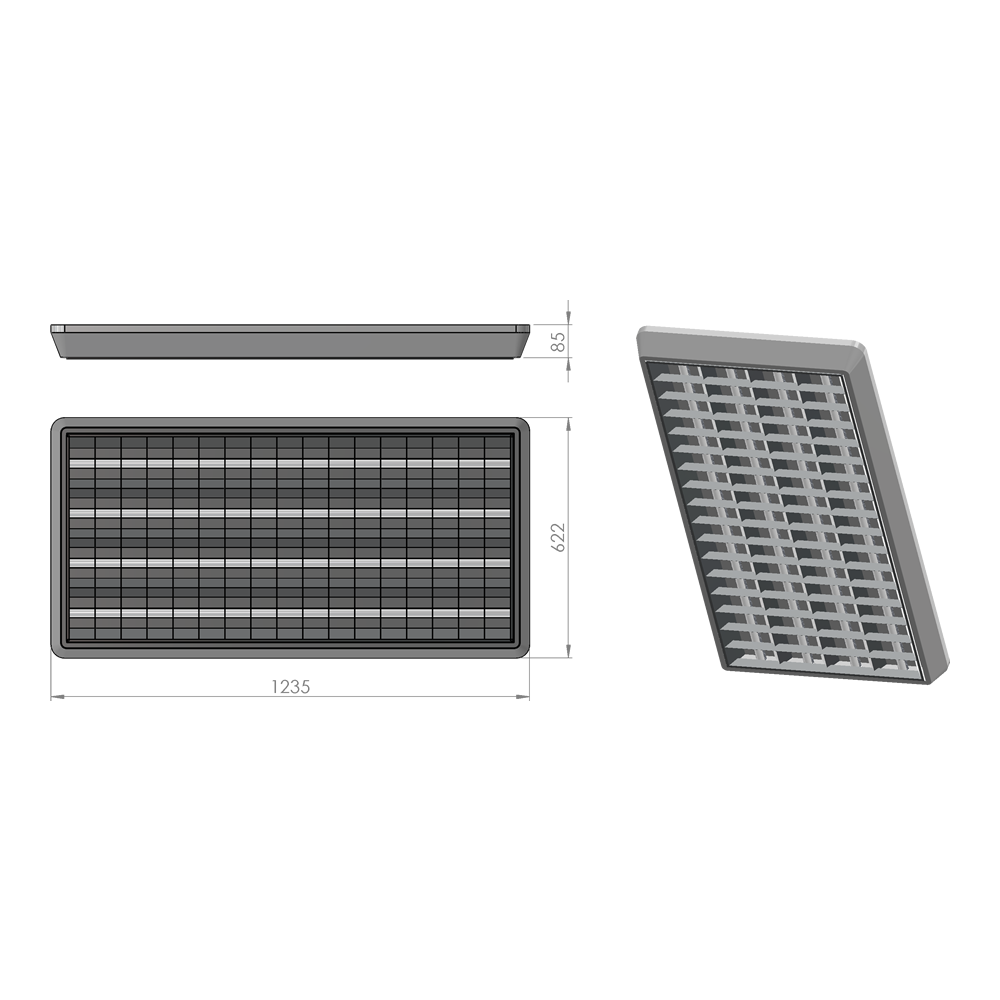

  • l3-60x120omdrawing
  • l3_tma2
  • L3 Ceiling Style 72W LP-L3-60×120 OM

    L3 Ceiling style is easy to install on ceilings with it’s conventional fluorescent-like housing. It offers unparalleled energy cost savings compared to T5 and T8 solutions and maximum efficiency.
    A2PLUS

    Applications:

    • Offices
    • Foyers
    • Conference rooms
    • Corridors, entrances, stairwells

    SKU: 54201

    Features

    Luminous Flux up to 8640 lm
    Efficiency up to 120 lm/W
    Luminaire Input Power 72 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.313 A
    Working Voltage AC 220 – 240 V
    Type of protection IP20
    Life 80 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Steel Sheet
    Diffuser Polystyrol
    Dimensions L x W x H 1235 x 622 x 85 mm
    L3 Ceiling Style 72W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L3-60X120 OM 542311128 LP-L3-60X120 OM 542311128 108 Lm/W 7770 Lm 3000 K NO
    Download Specifications LP-L3-60X120 OM 542411129 LP-L3-60X120 OM 542411129 114 Lm/W 8200 Lm 4000 K NO
    Download Specifications LP-L3-60X120 OM 542511130 LP-L3-60X120 OM 542511130 120 Lm/W 8640 Lm 5000 K NO
    Download Specifications LP-L3-60X120 OM DALI 542331131 LP-L3-60X120 OM DALI 542331131 108 Lm/W 7770 Lm 3000 K YES – to 1%
    Download Specifications LP-L3-60X120 OM DALI 542431132 LP-L3-60X120 OM DALI 542431132 114 Lm/W 8200 Lm 4000 K YES – to 1%
    Download Specifications LP-L3-60X120 OM DALI 542531133 LP-L3-60X120 OM DALI 542531133 120 Lm/W 8640 Lm 5000 K YES – to 1%
    L3 Ceiling Style 72W
    model
    Article number LDT files Protocols
    Download Specifications LP-L3-60X120 OM 542311128 LP-L3-60X120 OM 542311128 LDT (3.40 KB) Protocol (32.20 MB)
    Download Specifications LP-L3-60X120 OM 542411129 LP-L3-60X120 OM 542411129 LDT (3.40 KB) Protocol (32.20 MB)
    Download Specifications LP-L3-60X120 OM 542511130 LP-L3-60X120 OM 542511130 LDT (3.40 KB) Protocol (32.20 MB)
    Download Specifications LP-L3-60X120 OM DALI 542331131 LP-L3-60X120 OM DALI 542331131 LDT (3.42 KB) Protocol (32.20 MB)
    Download Specifications LP-L3-60X120 OM DALI 542431132 LP-L3-60X120 OM DALI 542431132 LDT (3.42 KB) Protocol (32.20 MB)
    Download Specifications LP-L3-60X120 OM DALI 542531133 LP-L3-60X120 OM DALI 542531133 LDT (3.42 KB) Protocol (32.20 MB)
