L4 Spot Style 70W LP-L4U-60L-90P 45°

L4 Spot Style offers spot and flood beam angles thanks to dedicated optics for each LED source. It has a narrow and consistent light beams to cover wall washer applications and long distances. Its linear design and angle adjustment perfectly fits to any building, site illumination, warehouses with high ceilings.

Applications:

General site illumination
Architectural lighting
Signage and retail spaces
Security camera companion
Warehouses

SKU: 11009

Category: L4 Spot Style

Description
Downloads

Features

Luminous Flux up to	5600 lm
Efficiency up to	80 lm/W
Luminaire Input Power	70 W
CRI	> 80
LED	PROLight
Input Current AC	0.304 A
Working Voltage AC	220 – 240 V
Type of protection	IP67

Life	80 000 hours
Power Factor – Cos(φ)	≥ 0.9
Operating Temperature	-50 to +45 C°
Housing	Aluminium
Diffuser	Tempered Glass
Dimensions L x W x H	718 x 117 x 94 mm
Weight	5.0 kg

L4 Spot Style 70W model	Article number	Efficiency	Luminous Flux	CCT	Dimmable
LP-L4U-60L-90P 45°	110411555	80 Lm/W	5600 Lm	4000 K	NO
LP-L4U-60L-90P 45°	110511556	80 Lm/W	5600 Lm	5000 K	NO

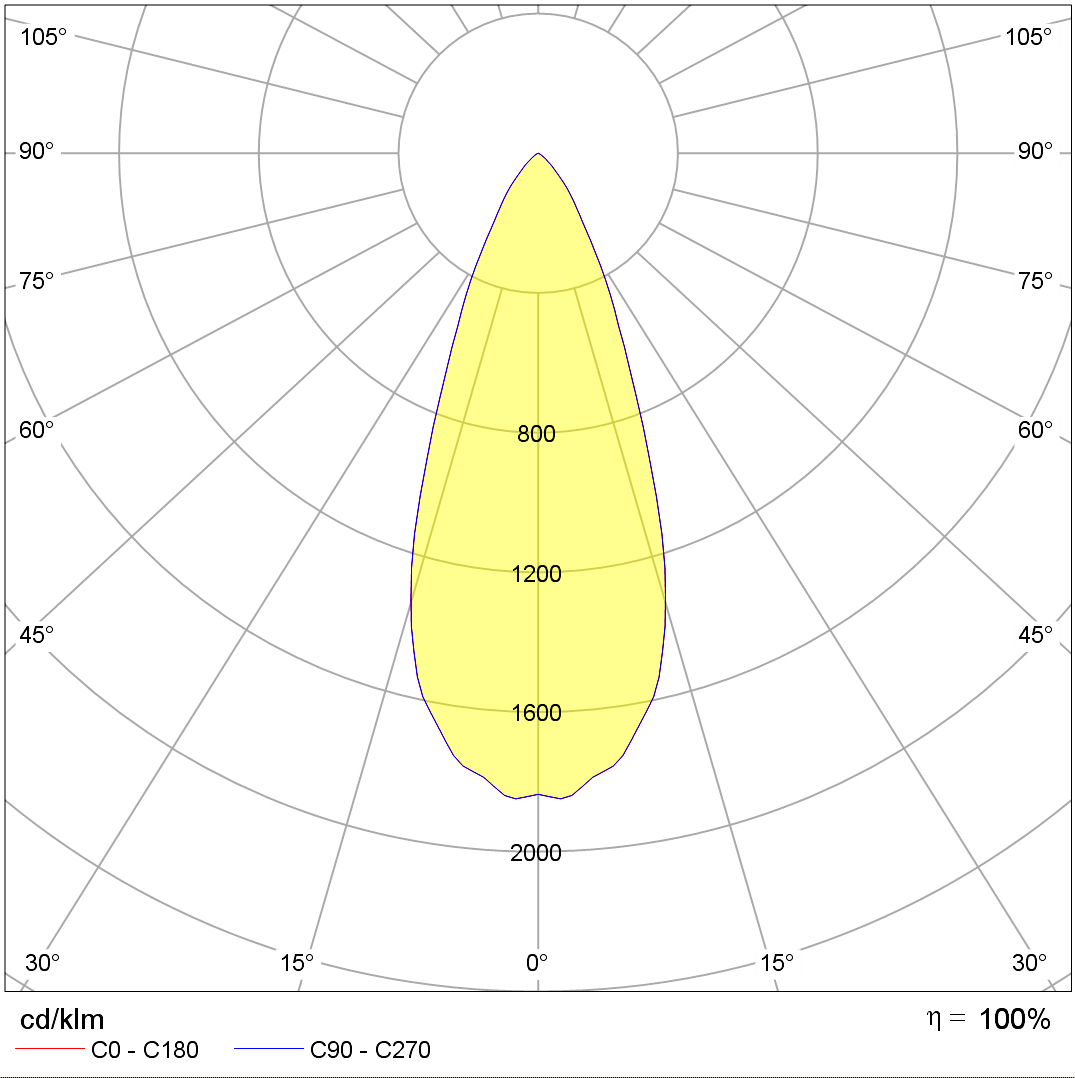

L4 Spot Style 70W model	Article number	LDT files	Protocols
LP-L4U-60L-90P 45°	110411555	LDT (692.00 B)	Protocol (2.53 MB)
LP-L4U-60L-90P 45°	110511556	LDT (692.00 B)	Protocol (2.53 MB)
