Home Outdoor LED Luminaires L4 Spot Style L4 Spot Style 70W LP-L4U-60L-90P 60°

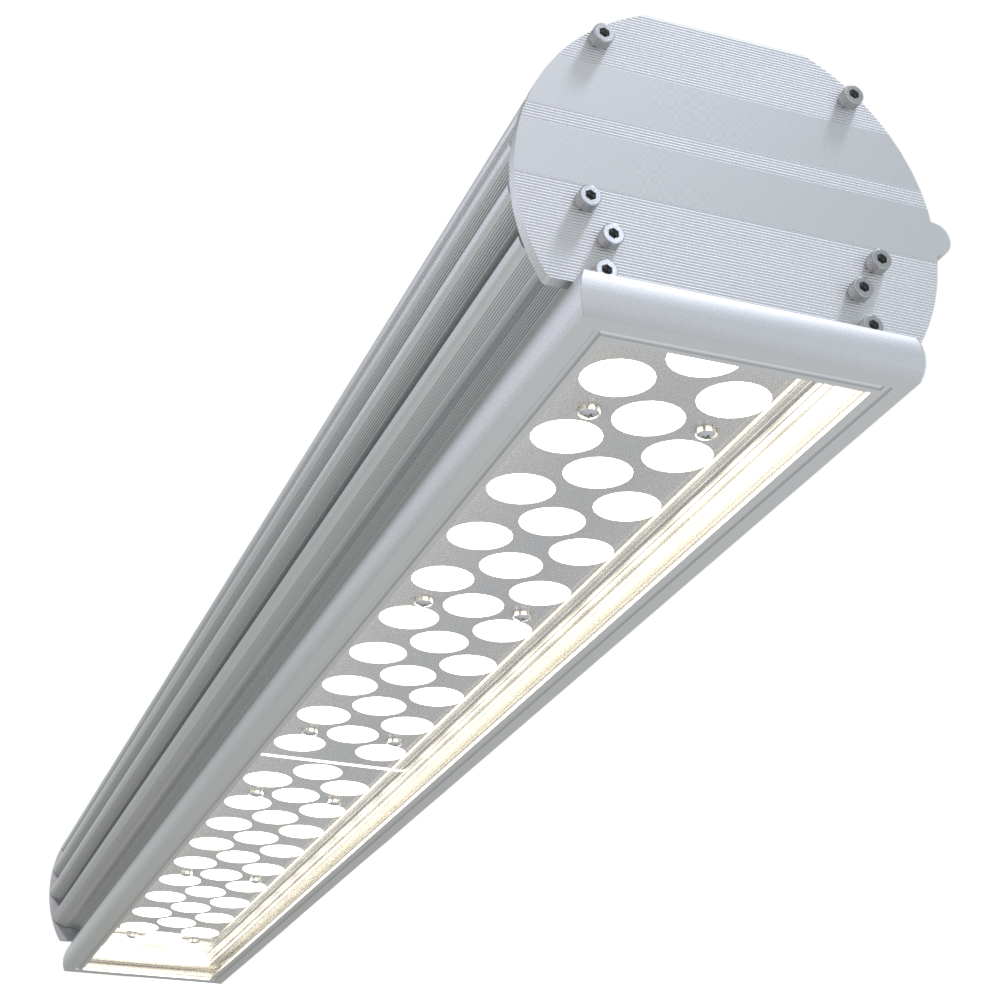

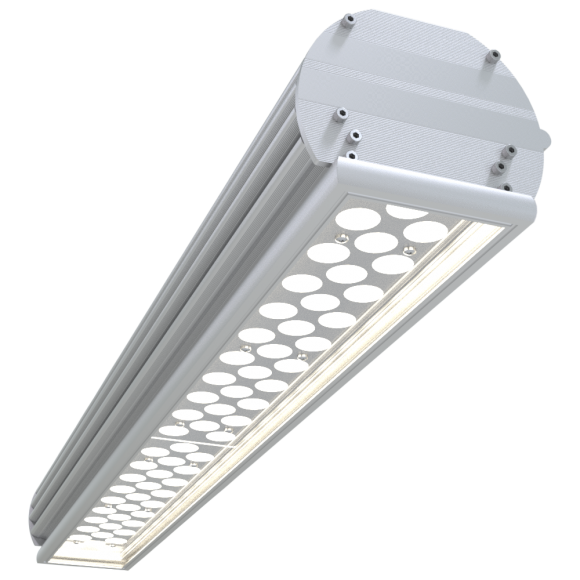

lp-l4u-60l-90prender

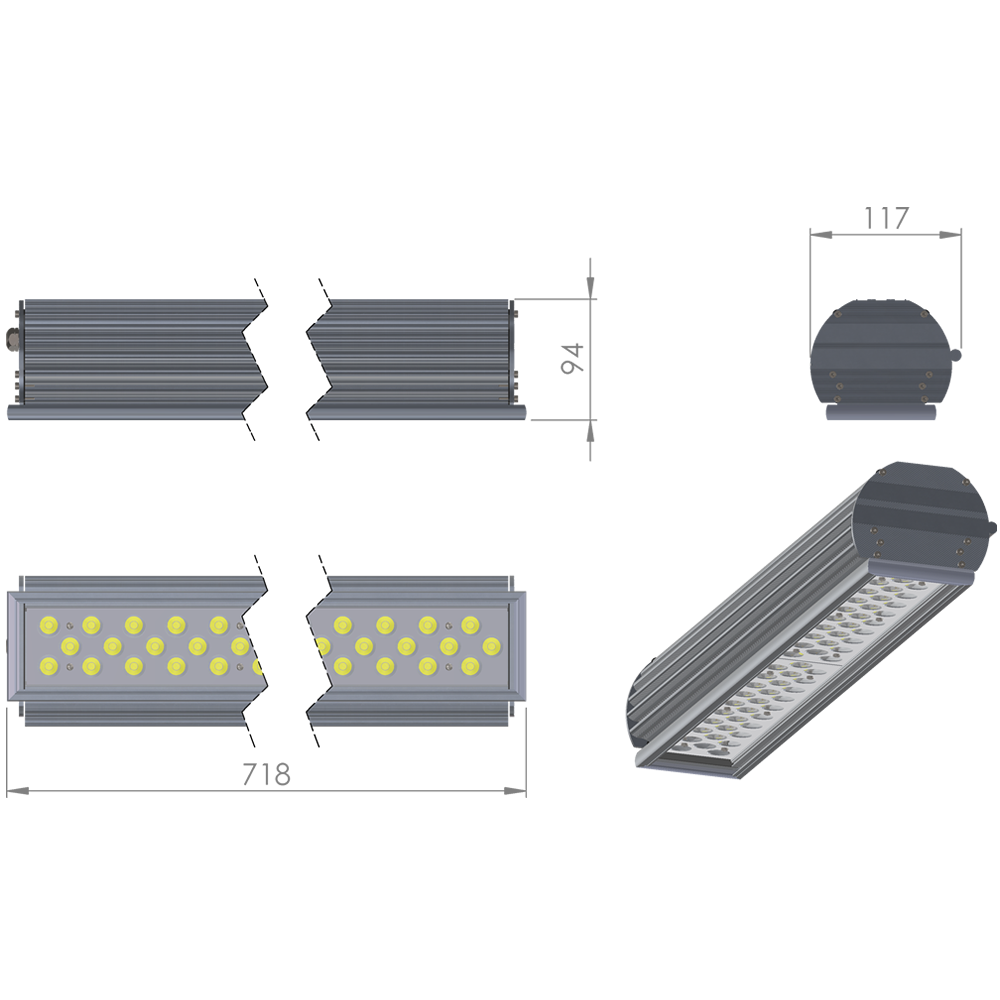

  • lp-l4u-60l-90pdrawing
  • l2-4_60dgr
  • L4 Spot Style 70W LP-L4U-60L-90P 60°

    L4 Spot Style offers spot and flood beam angles thanks to dedicated optics for each LED source. It has a narrow and consistent light beams to cover wall washer applications and long distances. Its linear design and angle adjustment perfectly fits to any building, site illumination, warehouses with high ceilings.
    A1PLUS

    Applications:

    • General site illumination
    • Architectural lighting
    • Signage and retail spaces
    • Security camera companion
    • Warehouses

    SKU: 11010
    Category:

    Features

    Luminous Flux up to 5600 lm
    Efficiency up to 80 lm/W
    Luminaire Input Power 70 W
    CRI > 80
    LED PROLight
    Input Current AC 0.304 A
    Working Voltage AC 220 – 240 V
    Type of protection IP67
    Life 80 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -50 to +45 C°
    Housing Aluminium
    Diffuser Tempered Glass
    Dimensions L x W x H 718 x 117 x 94 mm
    Weight 5.0 kg
    L4 Spot Style 70W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L4U-60L-90P 60° 110411557 LP-L4U-60L-90P 60° 110411557 80 Lm/W 5600 Lm 4000 K NO
    Download Specifications LP-L4U-60L-90P 60° 110511558 LP-L4U-60L-90P 60° 110511558 80 Lm/W 5600 Lm 5000 K NO
    L4 Spot Style 70W
    model
    Article number LDT files
    Download Specifications LP-L4U-60L-90P 60° 110411557 LP-L4U-60L-90P 60° 110411557 LDT (910.00 B)
    Download Specifications LP-L4U-60L-90P 60° 110511558 LP-L4U-60L-90P 60° 110511558 LDT (910.00 B)
