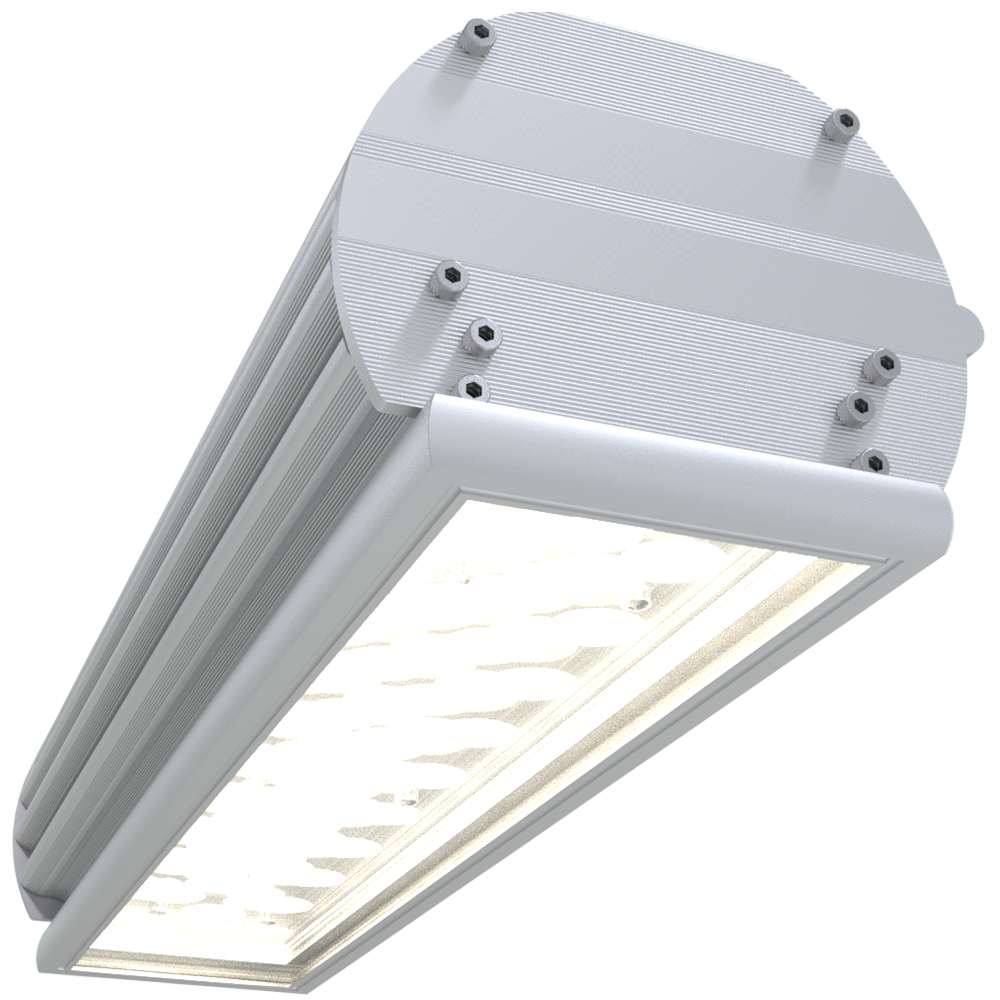

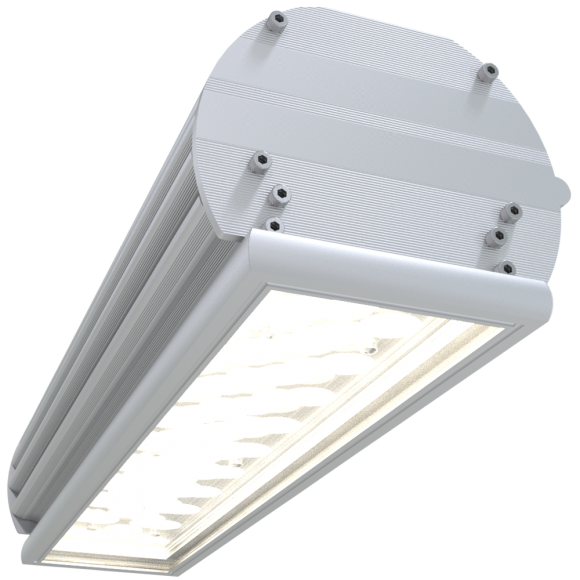

L4 Spot Style 35W LP-L4U-30L-45P 60°

L4 Spot Style offers spot and flood beam angles thanks to dedicated optics for each LED source. It has a narrow and consistent light beams to cover wall washer applications and long distances. Its linear design and angle adjustment perfectly fits to any building, site illumination, warehouses with high ceilings.

Applications:

General site illumination
Architectural lighting
Signage and retail spaces
Security camera companion
Warehouses

SKU: 11007

Category: L4 Spot Style

Description
Downloads

Features

Luminous Flux up to	2240 lm
Efficiency up to	64 lm/W
Luminaire Input Power	35 W
CRI	> 80
LED	PROLight
Input Current AC	0.152 A
Working Voltage AC	220 – 240 V
Type of protection	IP67

Life	80 000 hours
Power Factor – Cos(φ)	≥ 0.9
Operating Temperature	-50 to +45 C°
Housing	Aluminium
Diffuser	Tempered Glass

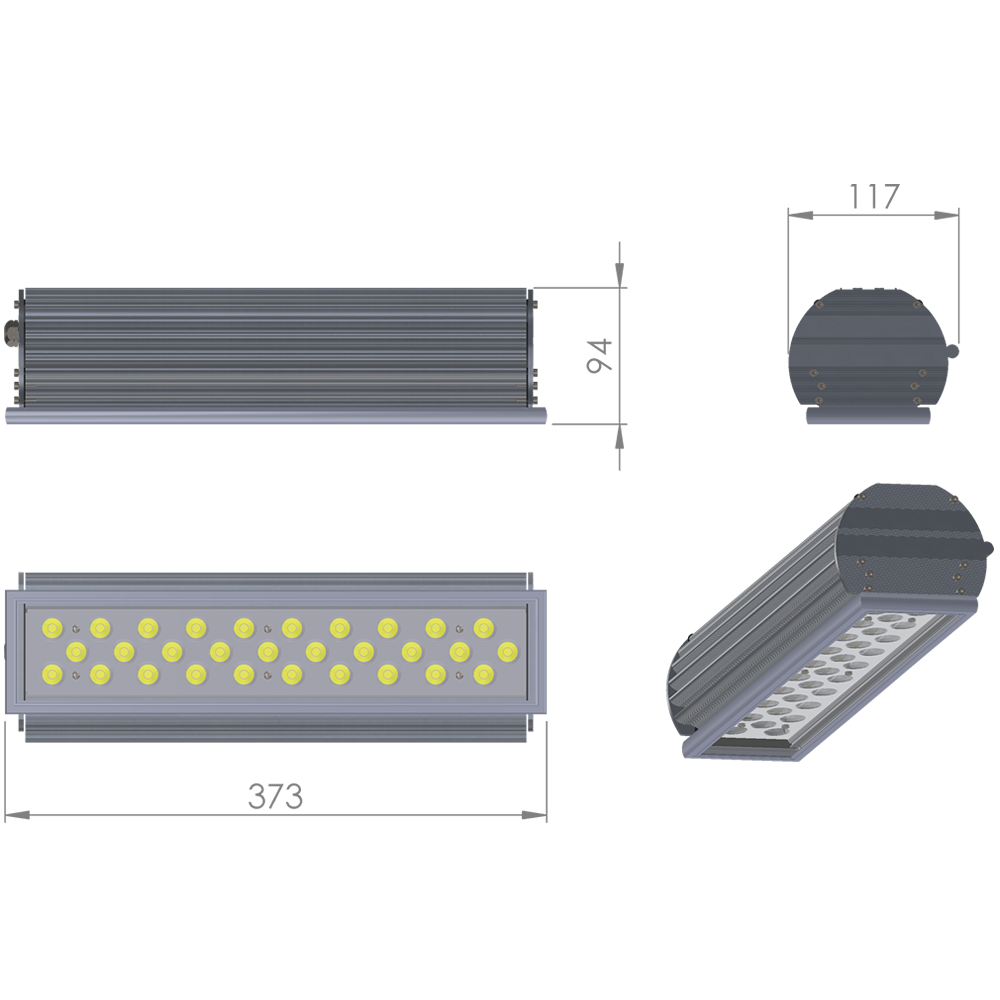

Dimensions L x W x H	373 x 117 x 94 mm
Weight	2.7 kg

L4 Spot Style 35W model	Article number	Efficiency	Luminous Flux	CCT	Dimmable
LP-L4U-30L-45P 60°	110411551	64 Lm/W	2240 Lm	4000 K	NO
LP-L4U-30L-45P 60°	110511552	64 Lm/W	2240 Lm	5000 K	NO

L4 Spot Style 35W model	Article number	LDT files
LP-L4U-30L-45P 60°	110411551	LDT (908.00 B)
LP-L4U-30L-45P 60°	110511552	LDT (912.00 B)
