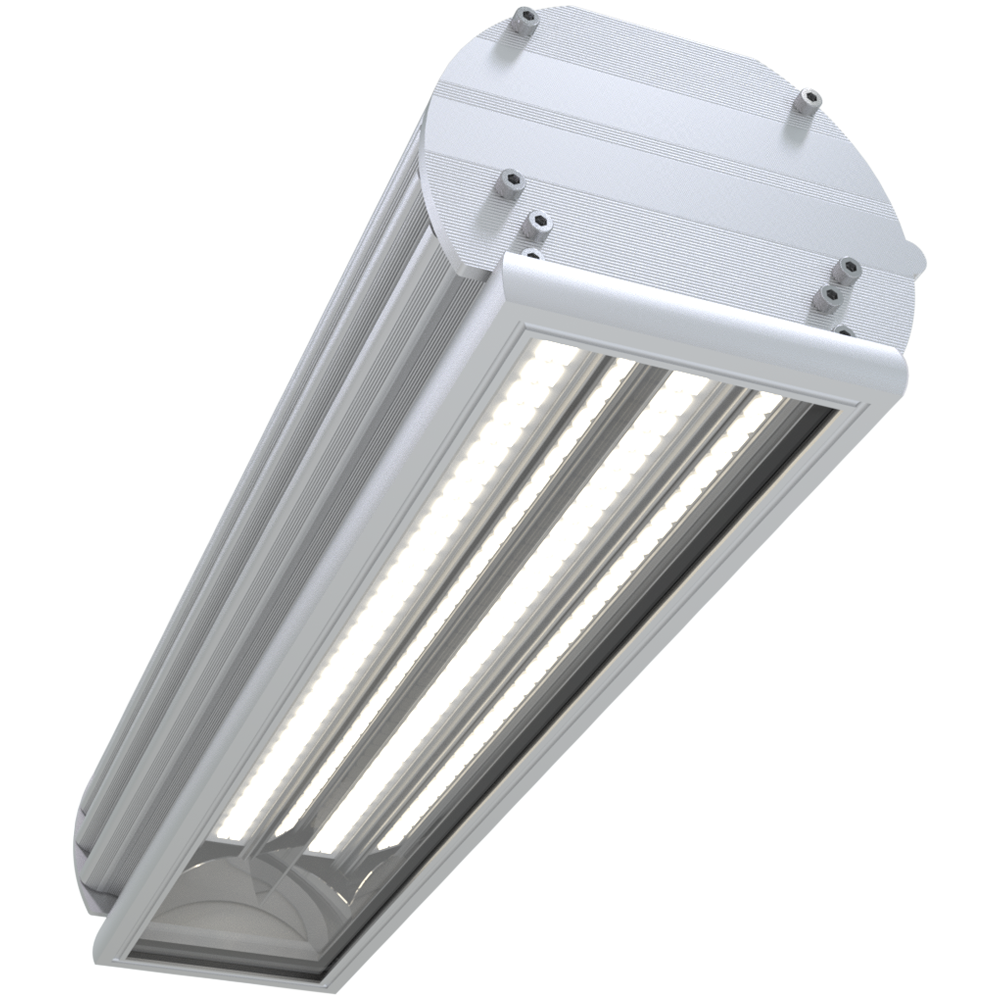

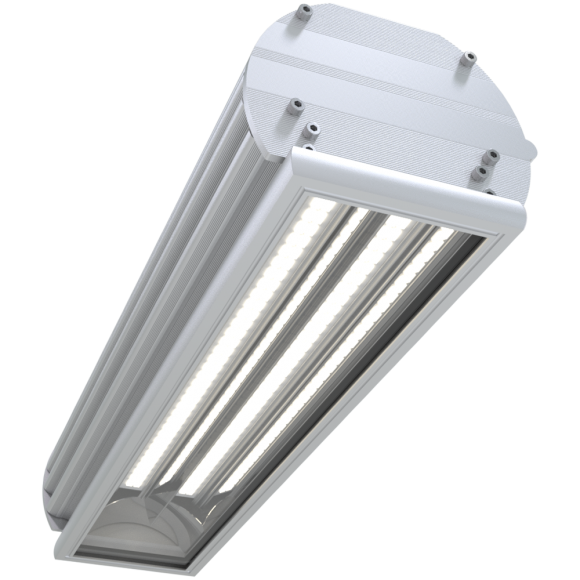

    • L4 Reflect Style 35W LP-L4-G30-144

    L4 Reflect Style is specially designed for area lighting solutions. It has a high efficiency, High IP rating and flexible mounting system.
    A2PLUS

    Applications:

    • Outdoor Parking areas
    • Parks
    • Sport and Recreational areas
    • Tunnels

    SKU: 11001
    Category:

    Features

    Luminous Flux up to 4590 lm
    Efficiency up to 131 lm/W
    Luminaire Input Power 35 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.152 A
    Working Voltage AC 220 – 240 V
    Type of protection IP67
    Life 80 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -50 to +45 C°
    Housing Aluminium
    Diffuser Tempered Glass

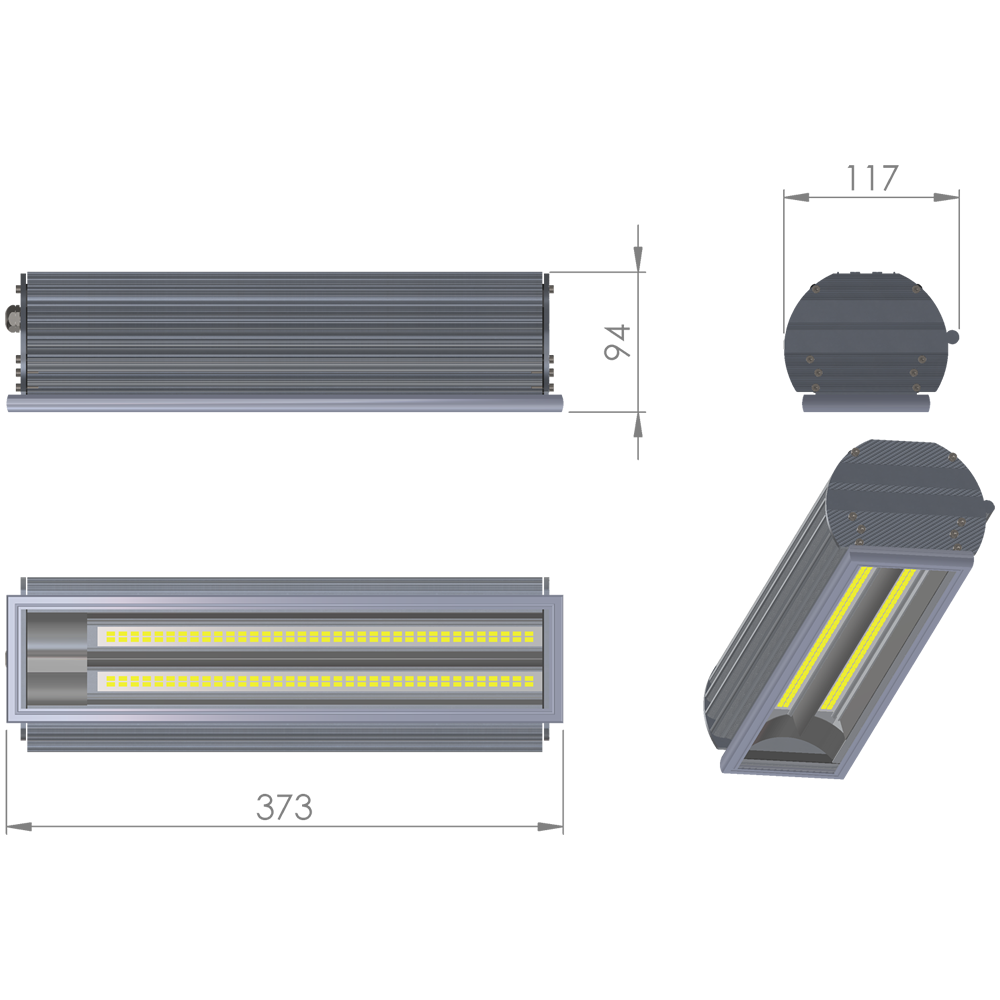

    Dimensions L x W x H 373 x 117 x 94 mm
    Weight 2.6 kg
    L4 Reflect Style 35W
    model    		 Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L4-G30-144 110411540 LP-L4-G30-144 110411540 125 Lm/W 4370 Lm 4000 K NO
    Download Specifications LP-L4-G30-144 110511541 LP-L4-G30-144 110511541 131 Lm/W 4590 Lm 5000 K NO
    L4 Reflect Style 35W
    model    		 Article number LDT files Protocols
    Download Specifications LP-L4-G30-144 110411540 LP-L4-G30-144 110411540 LDT (3.19 KB) Protocol (2.84 MB)
    Download Specifications LP-L4-G30-144 110511541 LP-L4-G30-144 110511541 LDT (3.19 KB) Protocol (2.84 MB)
