L2 Architectural Style 40W LP-L2-7528 60°

L2 Architecture style offers spot and flood beam angles thanks to dedicated optics for each LED source. It has a narrow and consistent light beams to cover wall washer applications and long distances. Its linear design and angle adjustment perfectly fits to any building or site illumination.

Applications:

General site illumination
Architectural lighting
Signage and retail spaces

SKU: 13006

Category: L2 Architectural Style

Description
Downloads

Features

Luminous Flux up to	2960 lm
Efficiency up to	74 lm/W
Luminaire Input Power	40 W
CRI	> 80
LED	PROLight
Input Current AC	0.174 A
Working Voltage AC	220 – 240 V
Type of protection	IP67

Life	80 000 hours
Power Factor – Cos(φ)	≥ 0.9
Operating Temperature	-50 to +45 C°
Housing	Aluminium
Diffuser	Tempered Glass

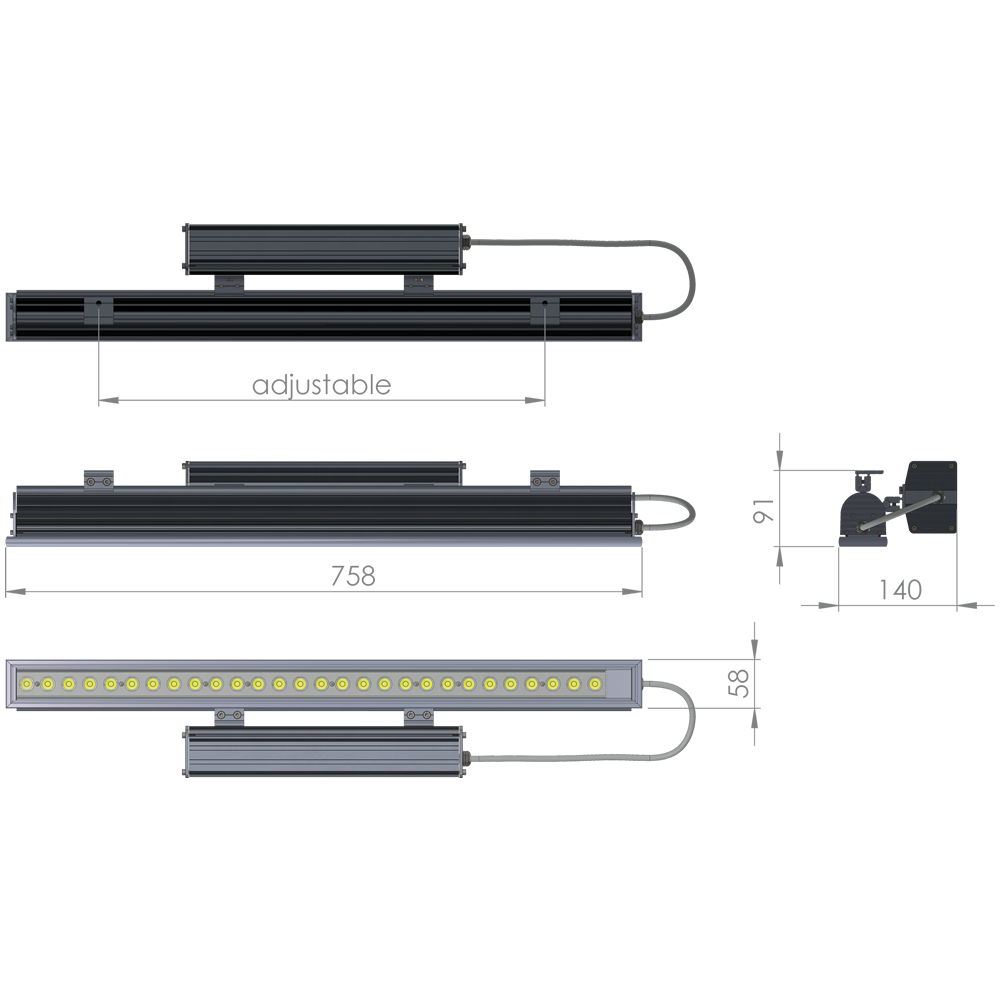

Dimensions L x W x H	758 x 140 x 91 mm

L2 Architectural Style 40W model	Article number	Efficiency	Luminous Flux	CCT	Dimmable
LP-L2-7528 60°	130411579	70 Lm/W	2800 Lm	4000 K	NO
LP-L2-7528 60°	130511580	74 Lm/W	2960 Lm	5000 K	NO

L2 Architectural Style 40W model	Article number	LDT files
LP-L2-7528 60°	130411579	LDT (900.00 B)
LP-L2-7528 60°	130511580	LDT (901.00 B)
