Home Retrofit LED Luminaires L3 Ceiling Style L3 Ceiling Style 36W LP-L3-60×60 OM

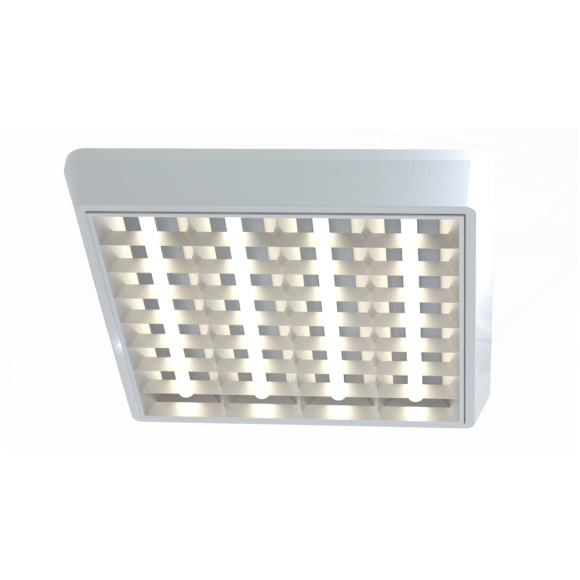

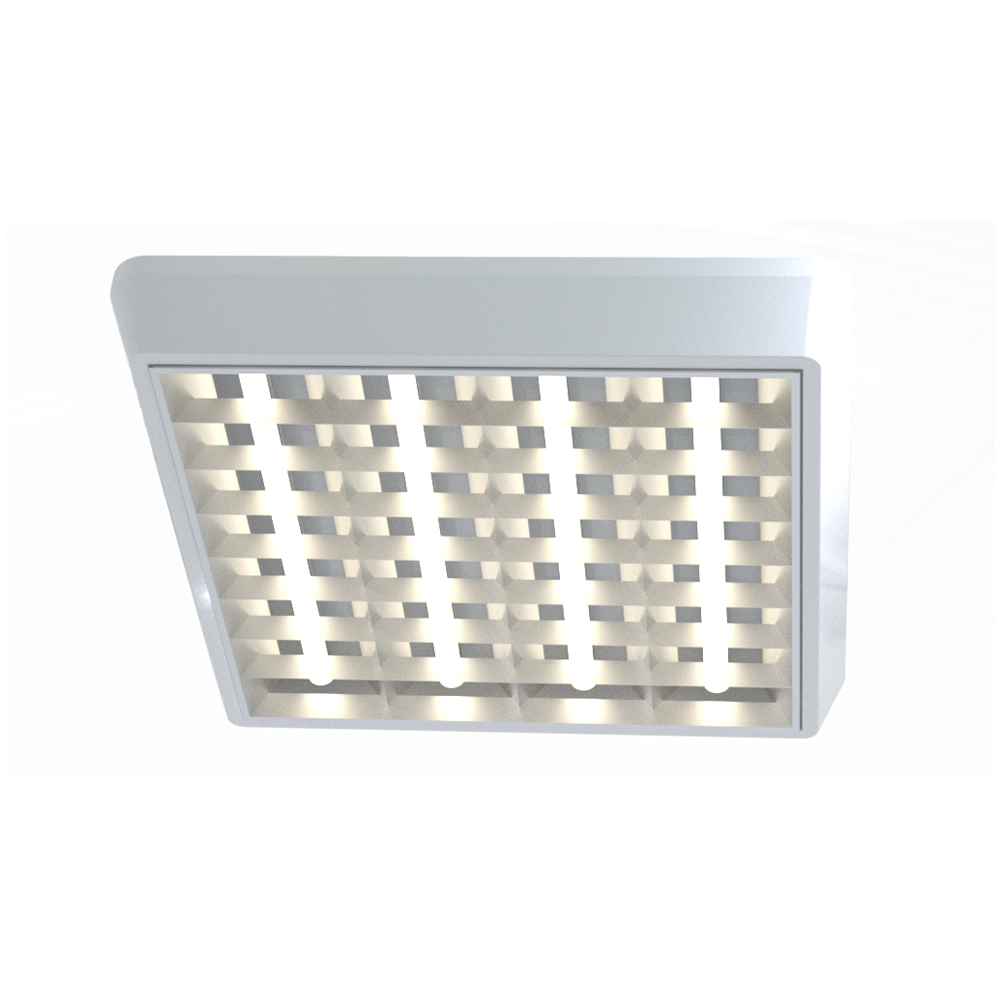

l3-60x60omrender

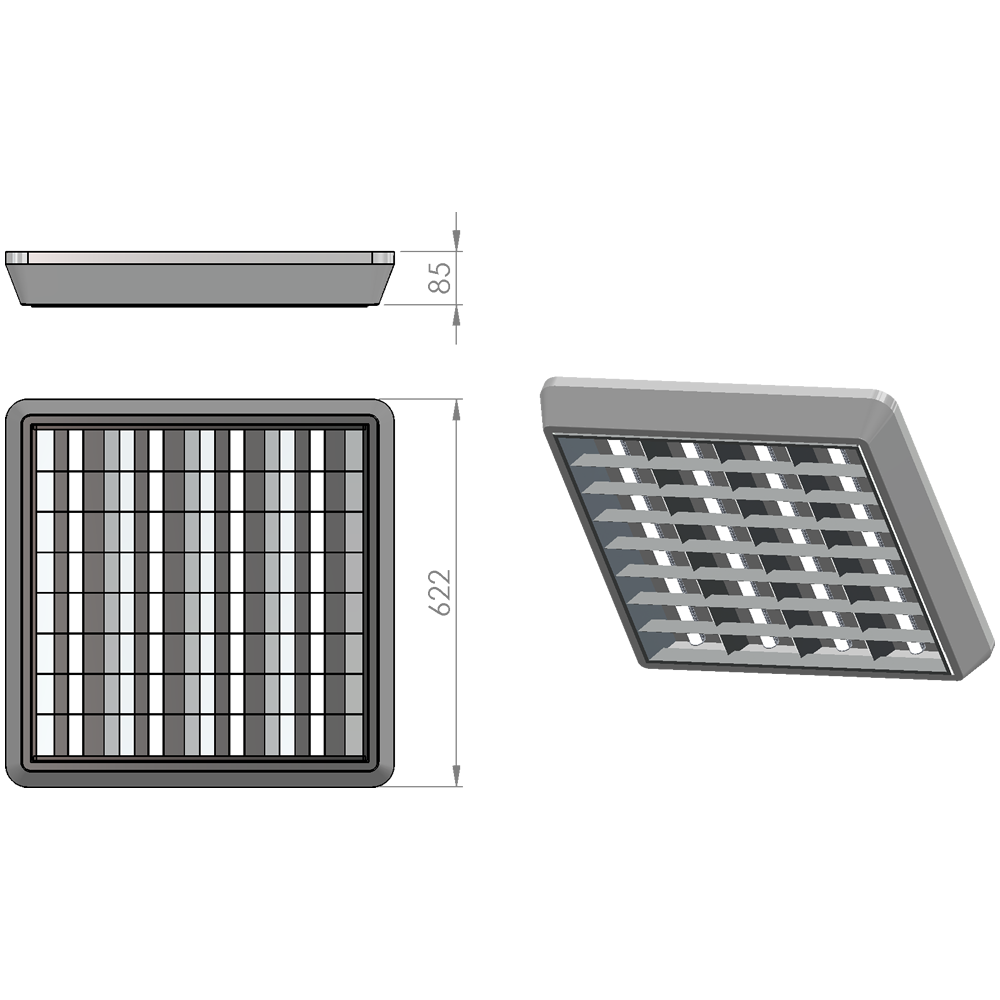

  • l3-60x60omdrawing

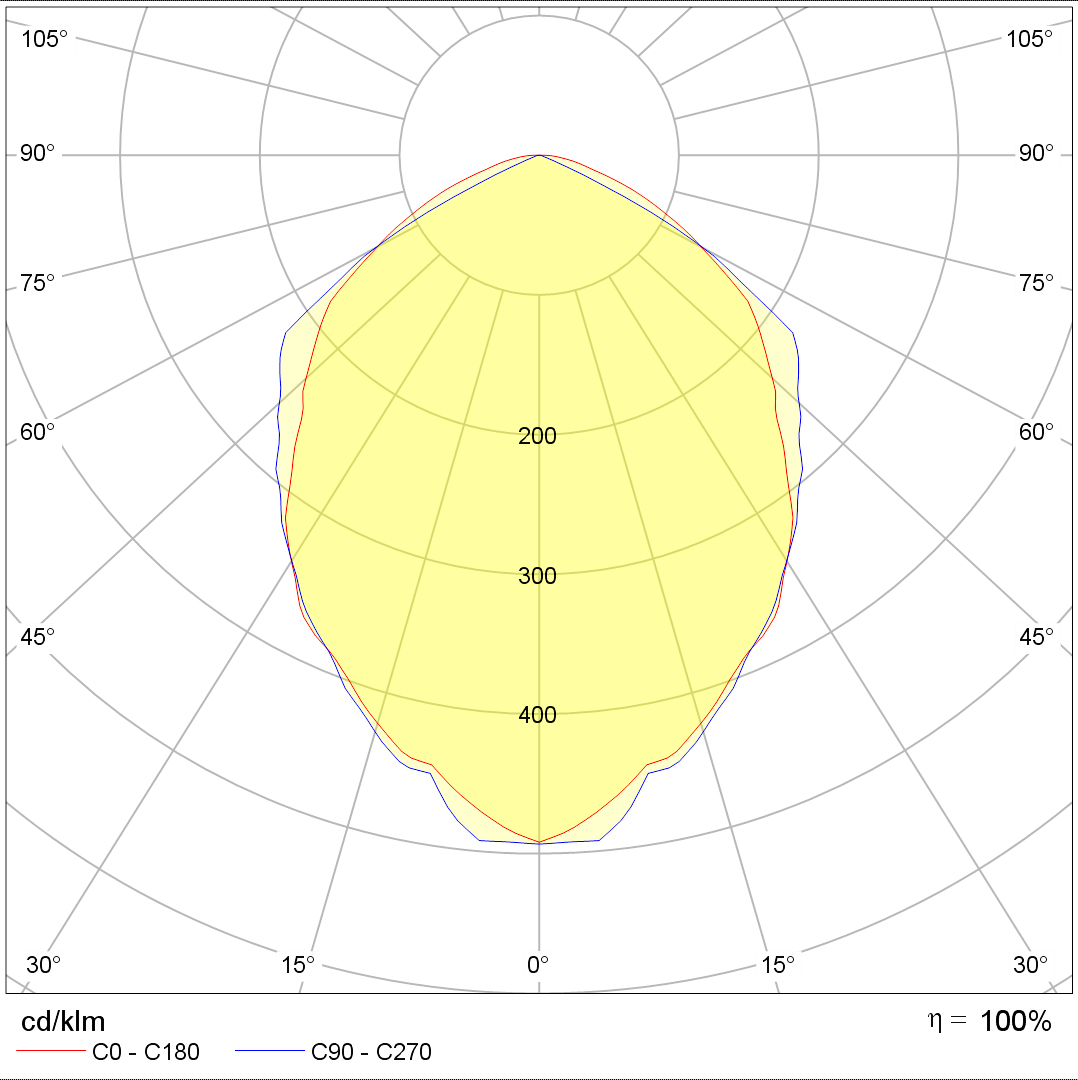

  • l3_tma
  • L3 Ceiling Style 36W LP-L3-60×60 OM

    L3 Ceiling style is easy to install on ceilings with it’s conventional fluorescent-like housing. It offers unparalleled energy cost savings compared to T5 and T8 solutions and maximum efficiency.
    A2PLUS

    Applications:

    • Offices
    • Foyers
    • Conference rooms
    • Corridors, entrances, stairwells

    SKU: 54202

    Features

    Luminous Flux up to 4320 lm
    Efficiency up to 120 lm/W
    Luminaire Input Power 36 W
    CRI > 80
    LED Samsung LM561B
    Input Current AC 0.157 A
    Working Voltage AC 220 – 240 V
    Type of protection IP20
    Life 80 000 hours
    Power Factor – Cos(φ) ≥ 0.9
    Operating Temperature -20 to +40 C°
    Housing Steel Sheet
    Diffuser Polystyrol
    Dimensions L x W x H 622 x 622 x 85 mm
    L3 Ceiling Style 36W
    model
    Article number Efficiency Luminous Flux CCT Dimmable
    Download Specifications LP-L3-60X60 OM 542311134 LP-L3-60X60 OM 542311134 108 Lm/W 3880 Lm 3000 K NO
    Download Specifications LP-L3-60X60 OM 542411135 LP-L3-60X60 OM 542411135 114 Lm/W 4100 Lm 4000 K NO
    Download Specifications LP-L3-60X60 OM 542511136 LP-L3-60X60 OM 542511136 120 Lm/W 4320 Lm 5000 K NO
    Download Specifications LP-L3-60X60 OM DALI 542331137 LP-L3-60X60 OM DALI 542331137 108 Lm/W 3880 Lm 3000 K YES – to 1%
    Download Specifications LP-L3-60X60 OM DALI 542431138 LP-L3-60X60 OM DALI 542431138 114 Lm/W 4100 Lm 4000 K YES – to 1%
    Download Specifications LP-L3-60X60 OM DALI 542531139 LP-L3-60X60 OM DALI 542531139 120 Lm/W 4320 Lm 5000 K YES – to 1%
    L3 Ceiling Style 36W
    model
    Article number LDT files Protocols
    Download Specifications LP-L3-60X60 OM 542311134 LP-L3-60X60 OM 542311134 LDT (3.46 KB) Protocol (2.62 MB)
    Download Specifications LP-L3-60X60 OM 542411135 LP-L3-60X60 OM 542411135 LDT (3.46 KB) Protocol (2.62 MB)
    Download Specifications LP-L3-60X60 OM 542511136 LP-L3-60X60 OM 542511136 LDT (3.46 KB) Protocol (2.62 MB)
    Download Specifications LP-L3-60X60 OM DALI 542331137 LP-L3-60X60 OM DALI 542331137 LDT (3.48 KB) Protocol (2.62 MB)
    Download Specifications LP-L3-60X60 OM DALI 542431138 LP-L3-60X60 OM DALI 542431138 LDT (3.48 KB) Protocol (2.62 MB)
    Download Specifications LP-L3-60X60 OM DALI 542531139 LP-L3-60X60 OM DALI 542531139 LDT (3.48 KB) Protocol (2.62 MB)
