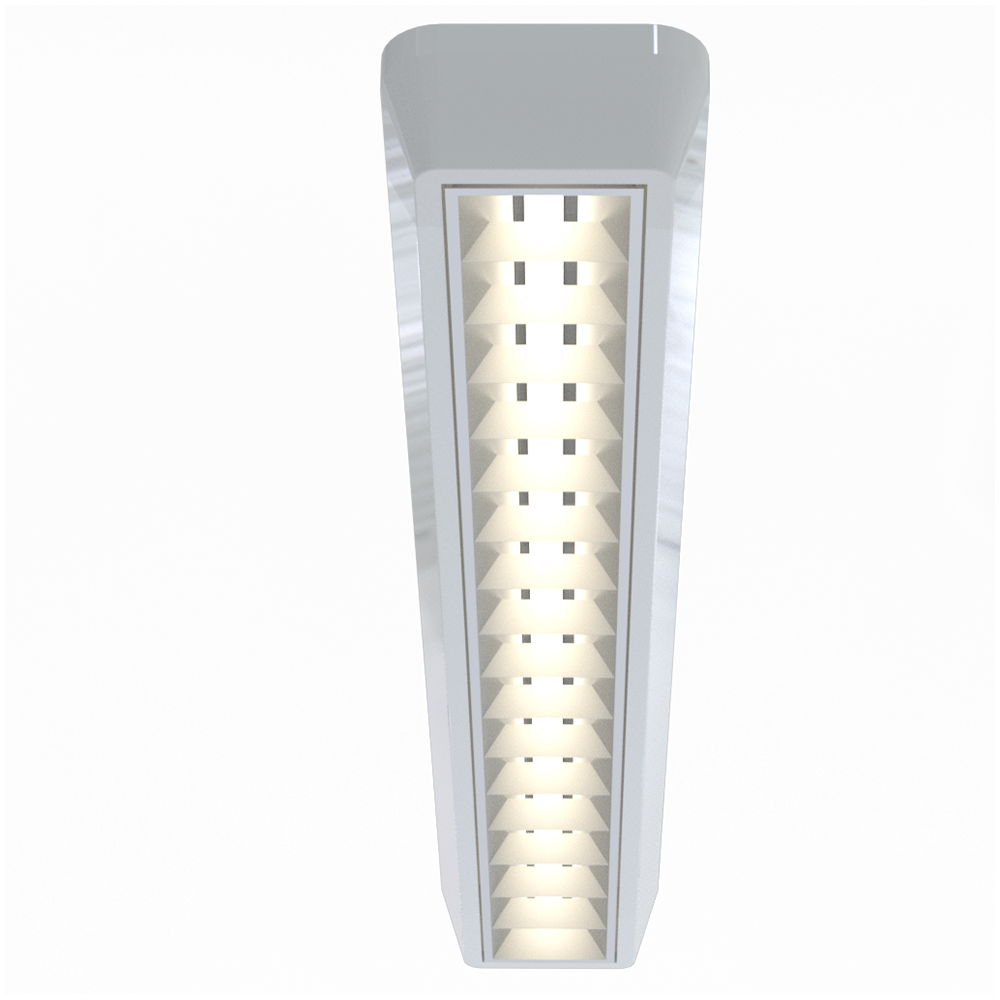

l3-18x120omrender

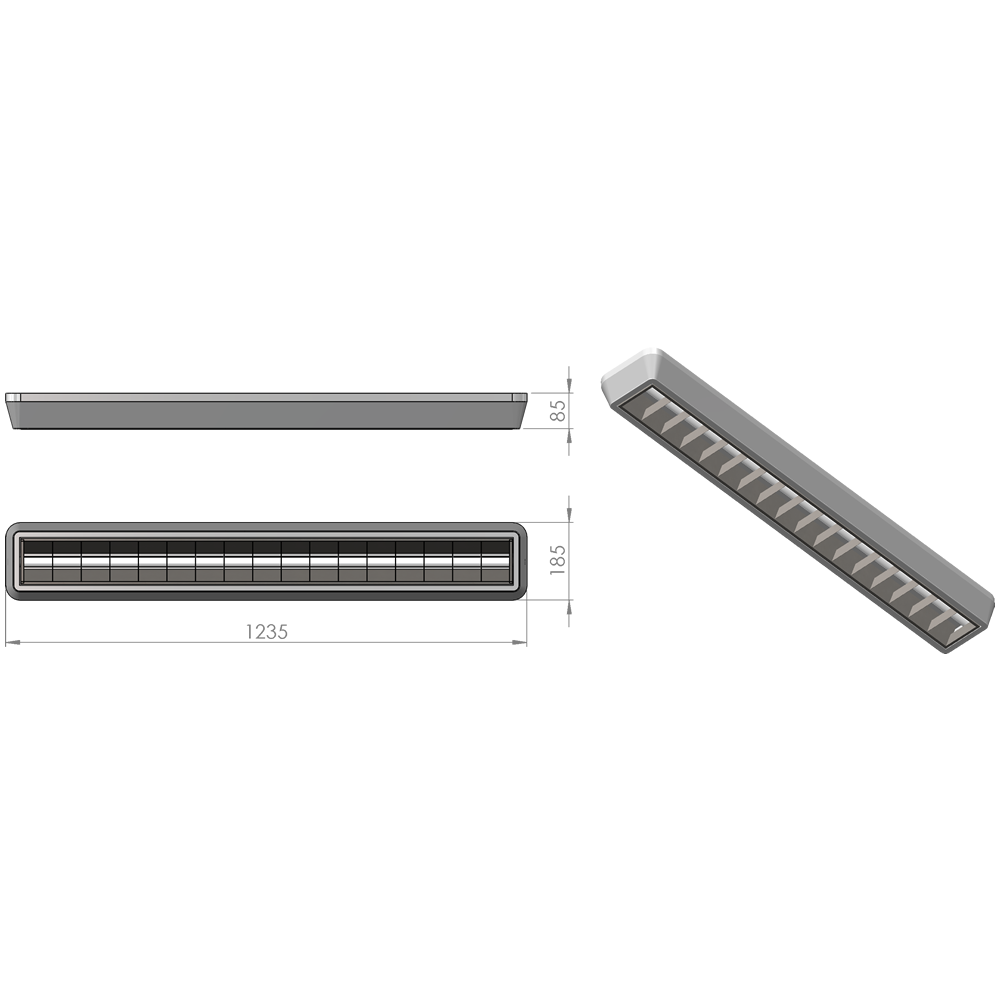

L3-18x120omdrawing

L3 Ceiling Style 28W LP-L3-18×120-96 OM

L3 Ceiling style is easy to install on ceilings with it’s conventional fluorescent-like housing. It offers unparalleled energy cost savings compared to T5 and T8 solutions and maximum efficiency.

Applications:

Offices
Foyers
Conference rooms
Corridors, entrances, stairwells

SKU: 54205

Category: L3 Ceiling Style

Description
Downloads

Features

Luminous Flux up to	3020 lm
Efficiency up to	108 lm/W
Luminaire Input Power	28 W
CRI	> 80
LED	Samsung LM561B
Input Current AC	0.122 A
Working Voltage AC	220 – 240 V
Type of protection	IP20

Life	80 000 hours
Power Factor – Cos(φ)	≥ 0.9
Operating Temperature	-20 to +40 C°
Housing	Steel Sheet
Diffuser	Polystyrol
Dimensions L x W x H	1235 x 185 x 85 mm

L3 Ceiling Style 28W model	Article number	Efficiency	Luminous Flux	CCT	Dimmable
LP-L3-18X120-96 OM	542311152	96 Lm/W	2680 Lm	3000 K	NO
LP-L3-18X120-96 OM	542411153	102 Lm/W	2850 Lm	4000 K	NO
LP-L3-18X120-96 OM	542511154	108 Lm/W	3020 Lm	5000 K	NO
LP-L3-18X120-96 OM DALI	542331155	96 Lm/W	2680 Lm	3000 K	YES – to 1%
LP-L3-18X120-96 OM DALI	542431156	102 Lm/W	2850 Lm	4000 K	YES – to 1%
LP-L3-18X120-96 OM DALI	542531157	108 Lm/W	3020 Lm	5000 K	YES – to 1%

L3 Ceiling Style 28W model	Article number	LDT files	Protocols
LP-L3-18X120-96 OM	542311152	LDT (3.26 KB)	Protocol (2.83 MB)
LP-L3-18X120-96 OM	542411153	LDT (3.26 KB)	Protocol (2.83 MB)
LP-L3-18X120-96 OM	542511154	LDT (3.26 KB)	Protocol (2.83 MB)
LP-L3-18X120-96 OM DALI	542331155	LDT (3.28 KB)	Protocol (2.83 MB)
LP-L3-18X120-96 OM DALI	542431156	LDT (3.28 KB)	Protocol (2.83 MB)
LP-L3-18X120-96 OM DALI	542531157	LDT (3.28 KB)	Protocol (2.83 MB)
